Gimbal LED Downlight Manufacturer
Precision Adjustable Lighting for Commercial Projects
Gimbal LED downlight is an adjustable recessed spotlight that allows the light beam to be directed at specific angles, making it ideal for accent lighting in retail stores, hotels, and galleries.
- 350° Horizontal Rotation
- Up to 45° Vertical Tilt
- High CRI >90
- Anti-glare Deep Reflector
- COB LED (CREE / CITIZEN / OSRAM)
- Triac dimming, 0/1-10V or Dali dimming

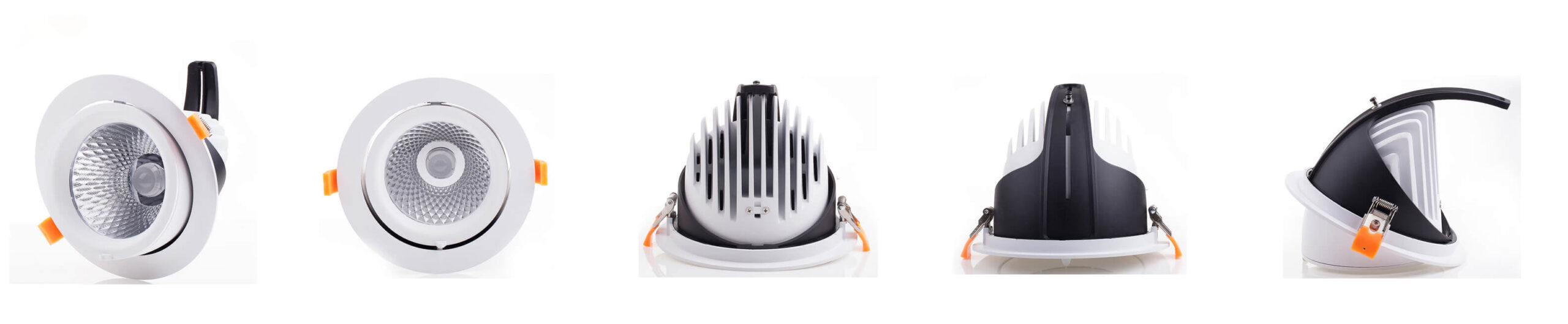

Snow Series – Precision Adjustable Downlights
The Snow Series is our dedicated range of gimbal LED downlights, designed for modern commercial lighting applications.
✔ Smooth and stable angle adjustment
✔ Clean and minimal recessed design
✔ High-performance COB light source
✔ Designed for professional lighting projects
Perfect for:
Retail | Hotel | Gallery | Showroom
| Model No. | ADW-DL-Snow-20W | ADW-DL-Snow-30W | ADW-DL-Snow-40W |
|---|---|---|---|
| Watt: | 20W | 30W | 40W |

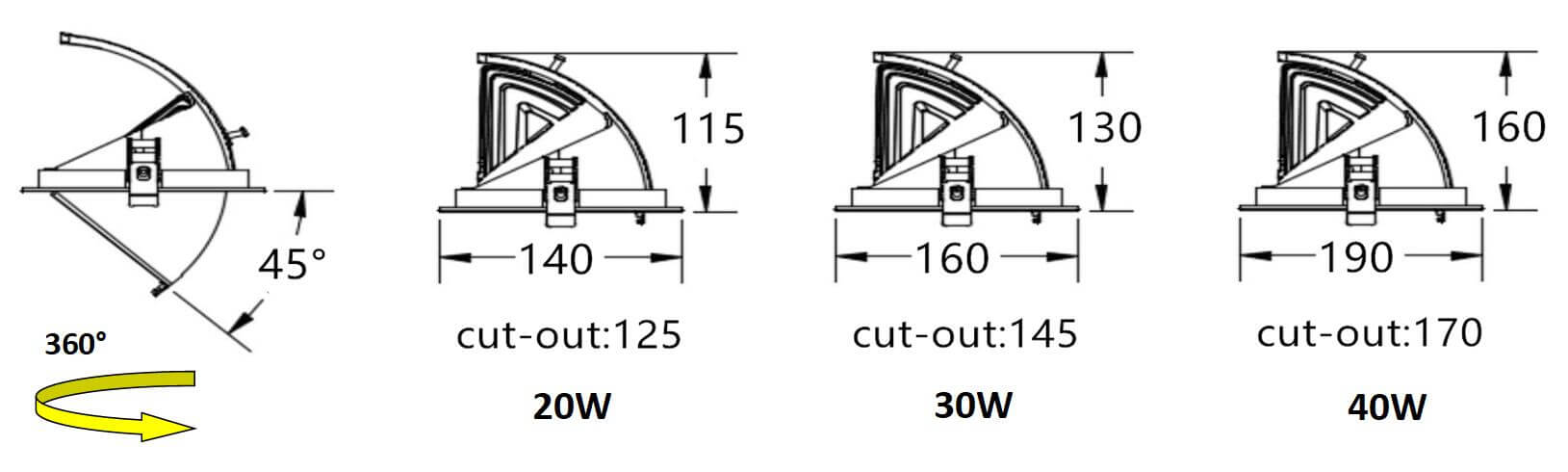

| Dimension: | Φ140*H115mm, cut-out: Φ125mm | Φ160*H130mm, cut-out: Φ145mm | Φ190*H160mm, cut-out: Φ170mm |
| Working voltage: | AC200-240V 50/60Hz | AC200-240V 50/60Hz | AC200-240V 50/60Hz |
| Light source: | COB LED, Ra>90, CREE/CITIZEN/OSRAM | COB LED, Ra>90, CREE/CITIZEN/OSRAM | COB LED, Ra>90, CREE/CITIZEN/OSRAM |
| CCT: | 2700K/3000K/4000K/5000K/6500K | 2700K/3000K/4000K/5000K/6500K | 2700K/3000K/4000K/5000K/6500K |
| Beam angle: | 15°, 24°, 38°, 60° | 15°, 24°, 38°, 60° | 15°, 24°, 38°, 60° |
| Lamp Head: | 360° horizontal rotation, 45° vertical tilt | 360° horizontal rotation, 45° vertical tilt | 360° horizontal rotation, 45° vertical tilt |
| Driver: | LIFUD / EAGLERISE / BOKE / PHILIPS / OSRAM | LIFUD / EAGLERISE / BOKE / PHILIPS / OSRAM | LIFUD / EAGLERISE / BOKE / PHILIPS / OSRAM |
| Dimmable: | ON.OFF, Triac dimming, 0/1-10V or Dali dimming | ON.OFF, Triac dimming, 0/1-10V or Dali dimming | ON.OFF, Triac dimming, 0/1-10V or Dali dimming |
| Material: | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Finish: | Matt White, Matt Black for optional | Matt White, Matt Black for optional | Matt White, Matt Black for optional |
| IP rating: | IP54 | IP54 | IP54 |

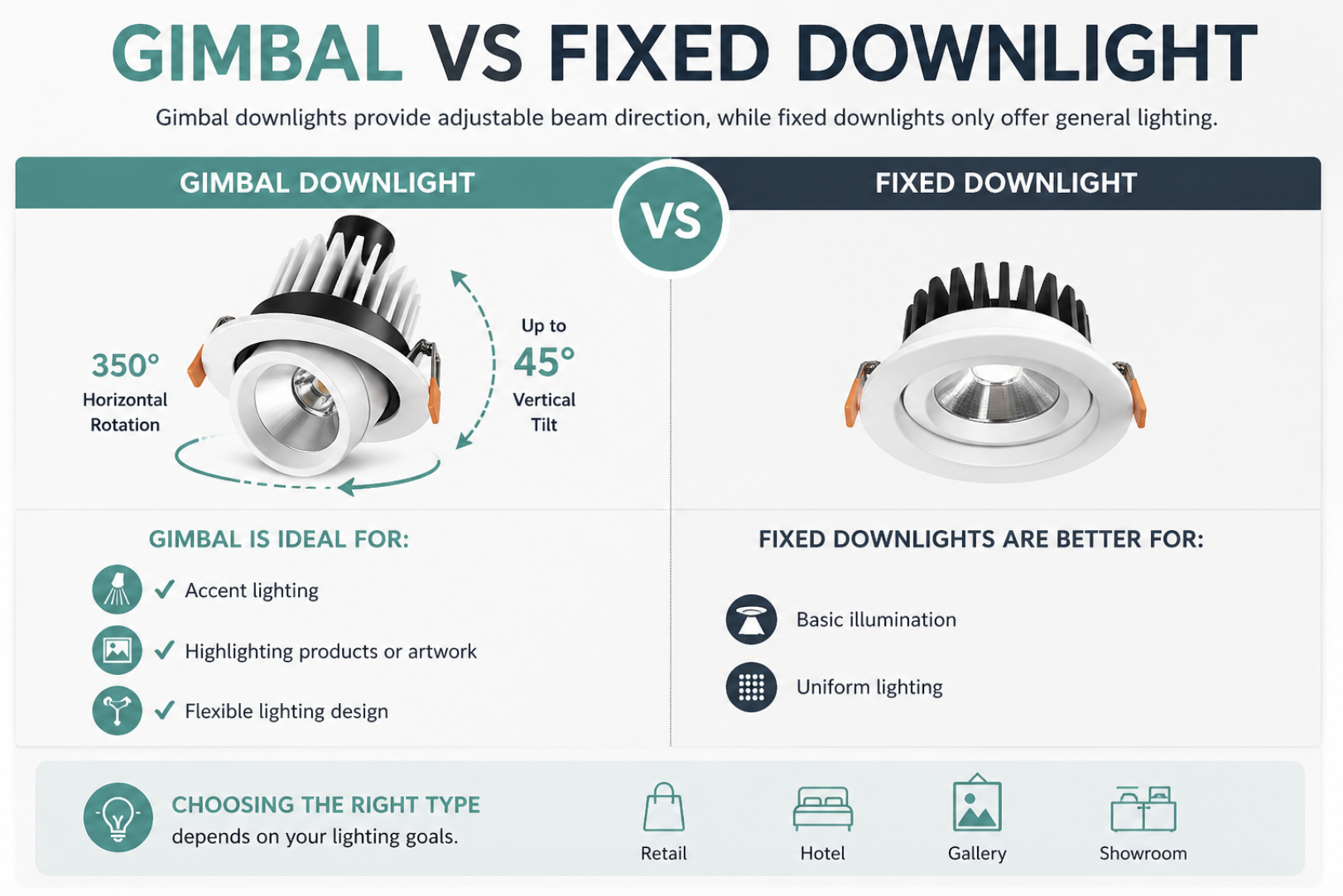

Gimbal vs Fixed Downlight
Gimbal downlights provide adjustable beam direction, while fixed downlights only offer general lighting.
Gimbal is ideal for:
✔ Accent lighting
✔ Highlighting products or artwork
✔ Flexible lighting design
Fixed downlights are better for:
✔ Basic illumination
✔ Uniform lighting
Choosing the right type depends on your lighting goals.

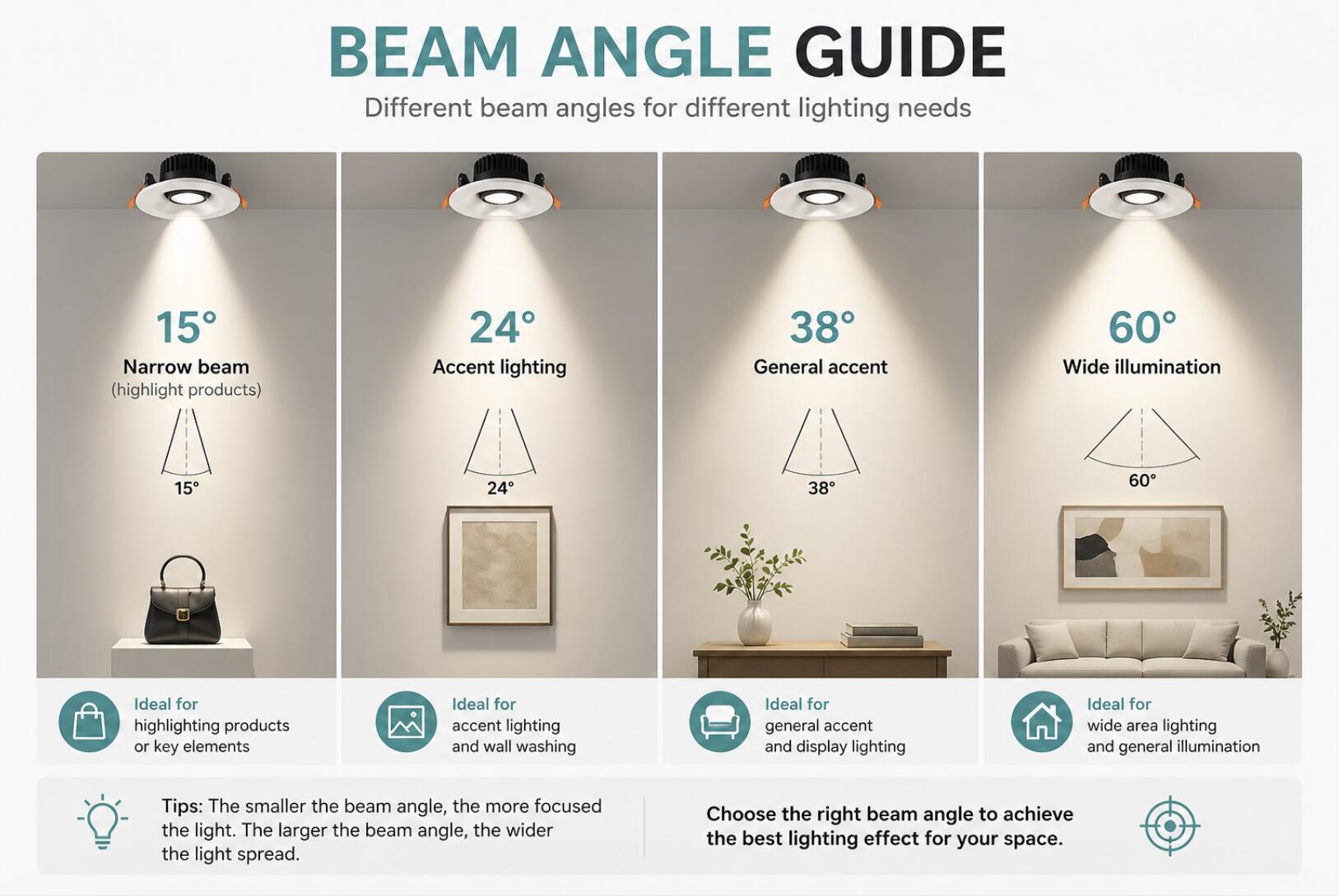

Beam Angle Guide
15° – Narrow beam (highlight products)
24° – Accent lighting
38° – General accent
60° – Wide illumination
Applications In Different Scenarios

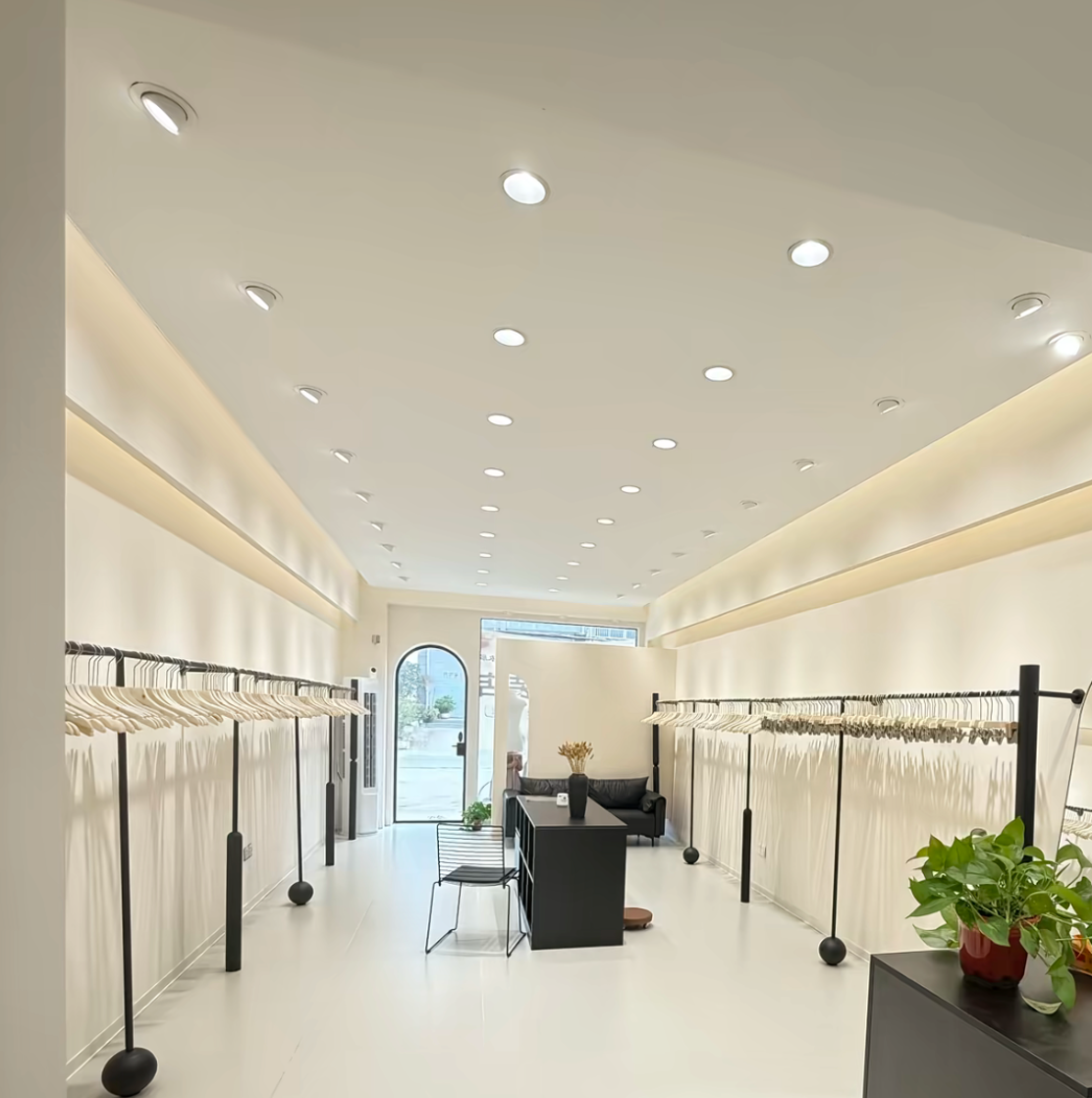

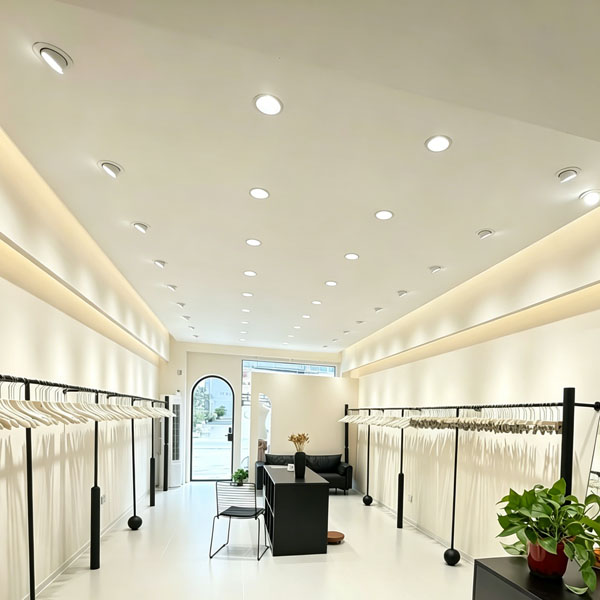

Retail Stores
Highlight products and visual focus

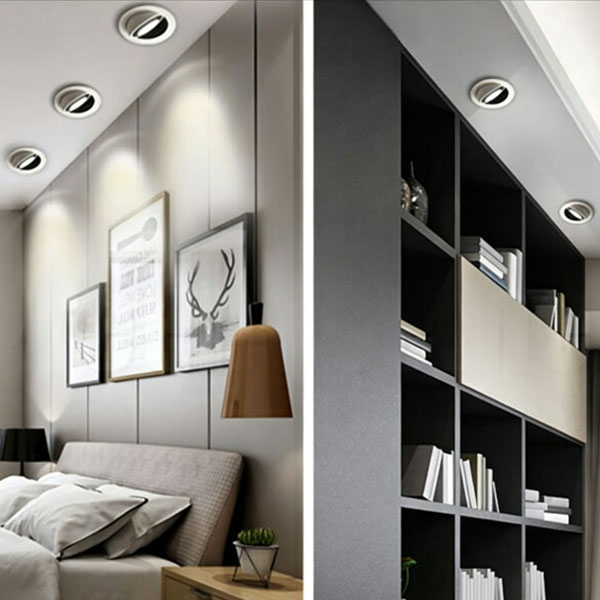

Hotels
Enhance lobby and corridor lighting

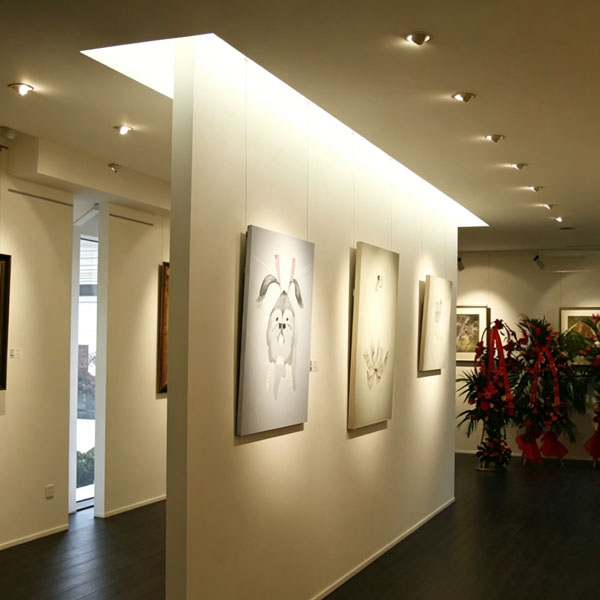

Art Galleries
Precise lighting for artwork Galleries

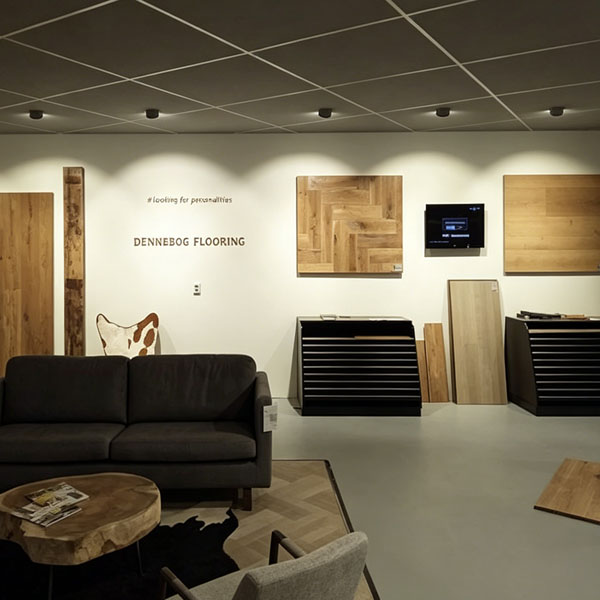

Showrooms
Create premium display environments
