AiDiWatt is a professional LED strip light manufacturer based in China, offering a complete range of flexible LED tape solutions for residential, commercial, and industrial lighting projects.
With over 12 advanced production lines, we specialize in COB, SMD, RGB, tunable white, and high-voltage LED strip lights. All our products support OEM & ODM customization to meet your unique needs in voltage, size, color temperature, packaging, and labeling.
Contact us now to get a fast quote and start your project with confidence.
Are you looking to brighten up your business and enhance its aesthetic appeal? Look no further! Working with a professional LED strip light manufacturer can offer numerous benefits for your business. LED strip lights are a versatile lighting solution that can transform any space into a visually stunning environment. Whether you own a retail store, restaurant, office, or any other commercial space, the right lighting can make a significant difference in creating a welcoming atmosphere for your customers and employees. Professional LED strip light manufacturers have the expertise and experience to provide you with high-quality, energy-efficient lighting solutions tailored to your specific needs. From custom designs to a wide range of color options, these manufacturers can help you create the perfect lighting scheme to showcase your products, highlight architectural features, or simply brighten up your workspace. So, if you’re ready to take your business to the next level, let a professional LED strip light manufacturer illuminate your path to success.
Custom LED Strip lights accordingly to your requirement
AiDiWatt Lighting can Custom LED Strip Lights. Our skilled engineers can design the LED Strip Light according to your requirements. We can offer the product design in 3 working days and offer samples within 3 weeks.
The features can be customized:
1. Custom LED Strip Length:
We can custom the length of led strip light. Like 1 meter/pc, 2 meters/pc, 10 meters/roll, even 30 meters/roll, 50 meters/roll. Some customers would like to buy long length per roll, cut the length when you need. Some customers would like to rung long length led strip light, like 30meters with one side power in.
2. Custom LED Strip Width:
For some special lighting project, you may need very narrow led strip light, like 3mm, 4mm, 5mm width. Or need some big width led strip light, like 15mm, 20mm width. Please tell us your requirement. We can design it.
3. Custom LED Strip Brightness:
Custom the Brightness of the LED Strip Light. Whether you need bright LED strips for accent lighting or warm diffused light for ambient lighting, we can offer you LED strip light custom in a wide variety of brightness intensities from 150 lm/ft to 1200 lm/ft.
4. Custom LED Strip CCT:
The standard CCT of LED strip lights are 2700K, 3000K, 4000K, and 6000K. But if you want 1800K, 2200K, 3500K, 5000K, 10000K, Red, Green, Blue, Purple, Yellow, Orange etc., we can make it for you.
5. Custom LED Strip Color Rendering Index (CRI):
The CRI of a custom LED light strip determines the strip’s vividness, color harmony, and hue. It is measured from 0 to 100. The higher the CRI, the more accurate the light’s colors will be. AiDiWatt Lighting can create custom strips with high CRI ratings that are ideal for commercial and industrial lighting applications.
6. Custom LED Strip IP Rating:
Ensure the protection of your custom LED strips from environmental factors such as dust and water by buying IP-rated strip lights from AiDiWatt Lighting. We offer flexible, silicone, and rigid LED strips that are available in IP20, IP65, IP67 and IP68 ratings to give you the level of protection you need.
We respect your confidentiality and all information is protected.
AIDIWATT Lighting Co., Ltd.
Address: Building D, Gongming Dianlian Technology Building, Guangming District, Shenzhen, China
WhatsApp: 008615919891625
Phone: +86 0755 23227859
Email: sales@aidiwatt.com / aidiwattlighting@gmail.com
Talk with Whatsapp and Wechat:
Multiple LED Strip Light for your Choice
Explore Our Complete Range of LED Strip Lights
At AiDiWatt Lighting, we manufacture a full range of high-quality LED strip lights to meet the needs of residential, commercial, and industrial projects. From seamless COB strips to versatile SMD models, dynamic addressable RGB solutions, high-voltage designs, and long-run options, our products are engineered for outstanding performance, durability, and easy installation. We also offer specialized types such as wide PCB COB strips for higher power output and dim-to-warm strips for creating cozy atmospheres.
With OEM & ODM customization, we can tailor voltage, color temperature, PCB width, waterproof rating, and packaging to your exact requirements. Whether you’re a lighting distributor, contractor, or project designer, our LED strip lights deliver the quality and flexibility you need for any application.
COB LED Strip Light:
What is COB LED Strip Light?
The full name of COB is the Chip On Board: directly package the chip on the circuit board. “Chip on Board” LEDs for flexible cob led strip lights are sometimes referred to as flip-chips. Flip chip LEDs are basically a bare-bones approach to LED construction.
Take a look at an ordinary SMD (Surface Mount Device) LED. It has a Lamp bead holder that package the LED chip and then covers it with a phosphor coating. The ‘flip chip’ that makes up the COB LED strip removes everything from its design, except for the LED chip, yellow phosphor cover layer, and connection pads.
The COB led strip is a high-density led lighting strip made by COB encapsulation, which can reduce the thermal resistance of the high-density strip circuit system, greatly improves the life of the LED, and the light flux density is high, the glare is small, and the light is uniform and there is no dark area.
There are multiple COB LED Strip Lights:
1. Single-color COB LED strip lights: 2700K, 3000K, 4000K, 6000K, Red, Green, Blue, other colours on request.
2. RGB COB LED strip lights: These are capable of producing a wide range of colors by mixing red, green, and blue LEDs.
3. RGBW COB LED strip lights: These include an additional white LED that can be used to produce a more extensive range of colors and white light.
4. CCT adjustable COB LED strip lights: These allow for the adjustment of the color temperature, making them suitable for different applications and settings.
5. Narrow COB LED strip lights are designed for applications where space is limited, and a narrower lighting profile is needed. These strips are available in various widths, with the narrowest ones measuring only a few millimeters wide.
6. High brightness COB LED strip lights are designed to produce a high level of brightness, making them suitable for applications that require bright illumination, such as retail displays, signage, and task lighting.
7. Long run COB LED strip lights are designed to operate for extended periods without failure, making them ideal for commercial and industrial applications. These strips are typically designed with better heat dissipation and high-quality components to ensure long-lasting performance.
8. Waterproof COB LED strip lights: These are designed for outdoor and wet location applications, and are available with various IP ratings for different levels of water resistance.

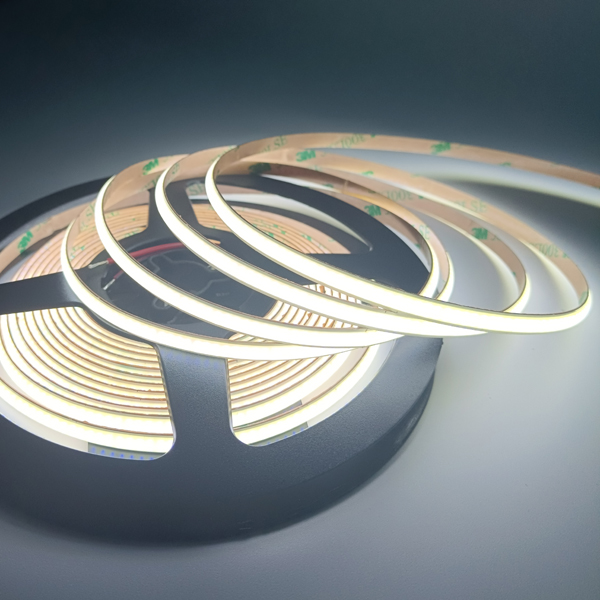

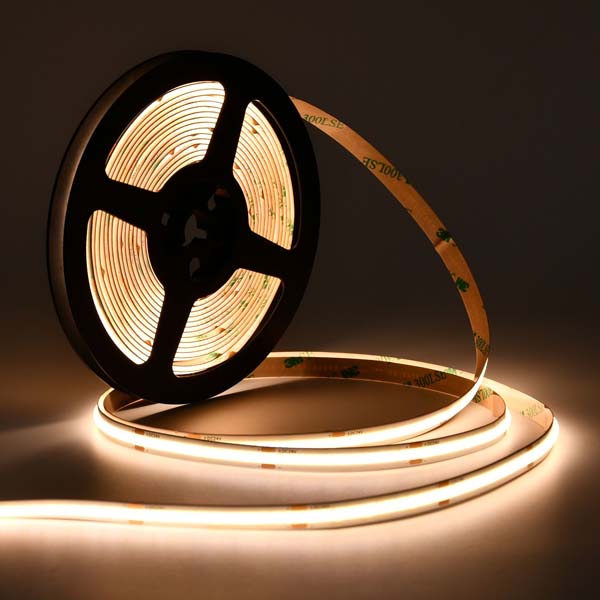

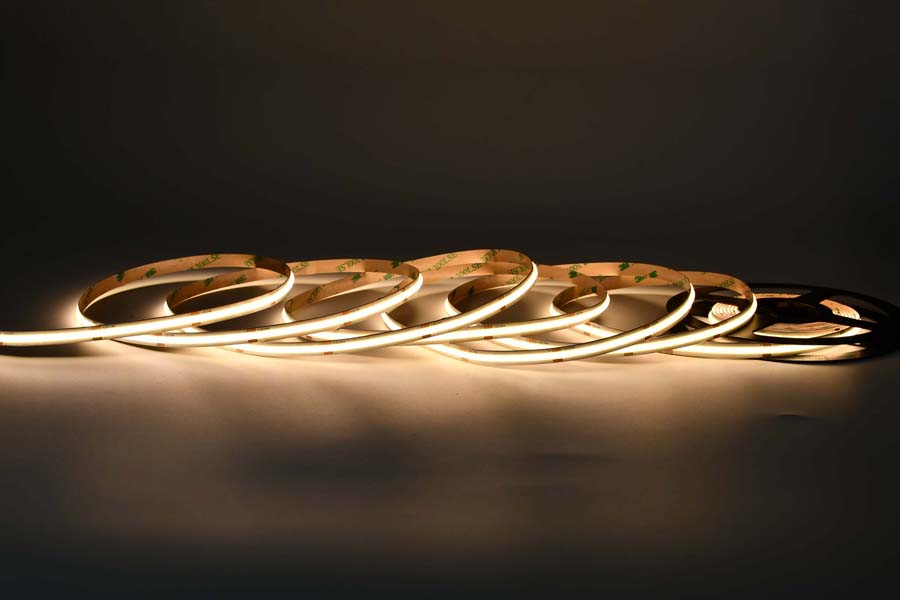

Single Color COB LED Strip Light
2700K

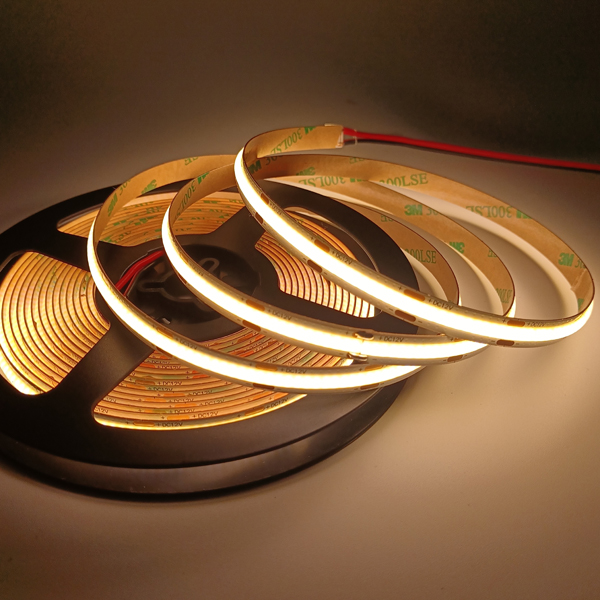

3000K

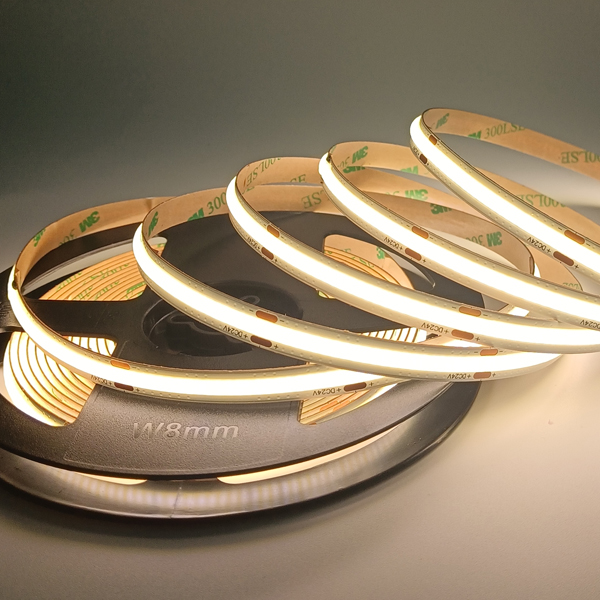

4000K
6000K

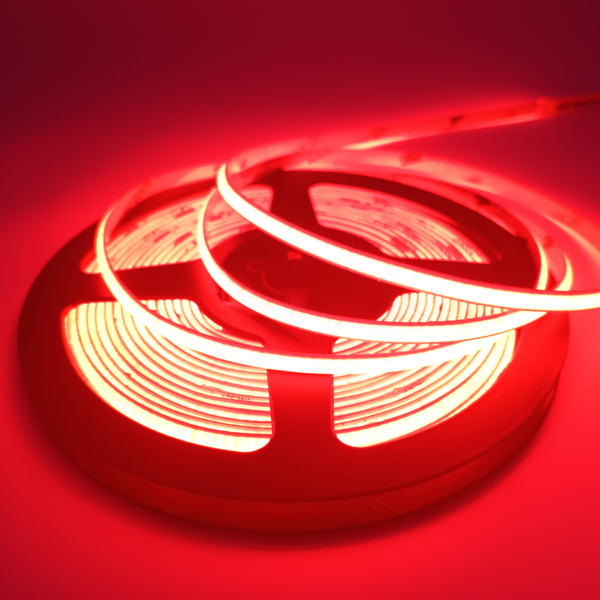

Red

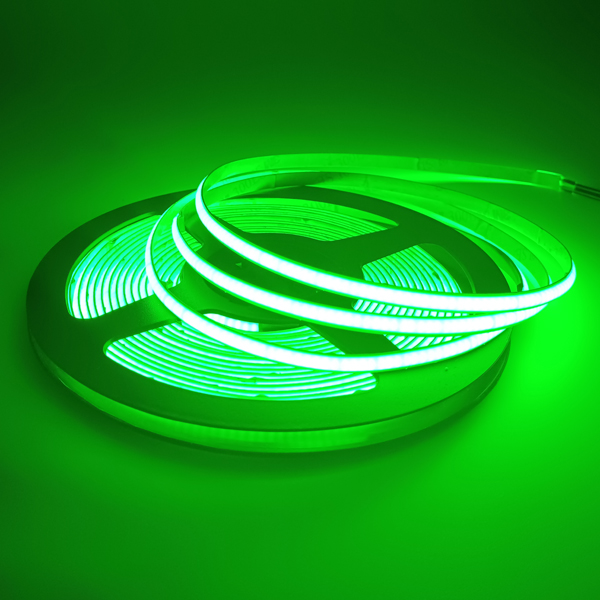

Green

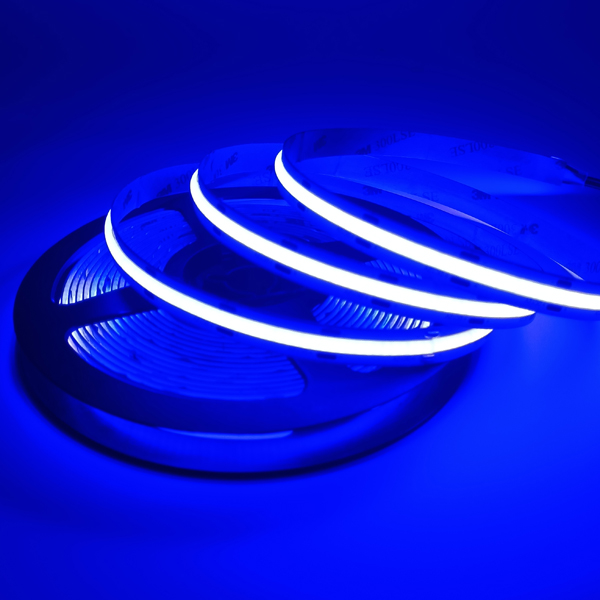

Blue
Our COB single color LED strip lights deliver uniform, dot-free illumination with a high CRI (>90) for accurate color rendering. Available in vibrant red, green, blue, and a range of white color temperatures (2700K, 3000K, 4000K, 6000K), this series offers versatile options for both decorative and functional lighting.
With chip densities from 320 to 512 chips per meter and PCB widths of 8mm or 10mm, these strips provide superior brightness and smooth light output. They are available in DC12V and DC24V versions, with wattages from 9W/m to 14W/m and lumen output up to 1470 lm/m. The flexible cuttable design (12V: 25mm, 24V: 50mm) allows easy installation for custom lengths.
Perfect for accent lighting, architectural details, retail displays, and residential projects, our COB single color LED strips combine high efficiency, stability, and long lifespan for professional-grade results.
Specifications:
| Model No. | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-320S-8 | COB | 2700K/3000K 4000K/6000K | >90 | 320Chips/m | 8mm | DC12/24V | 9W/m | 950LM/m | 12V:25mm 24V:50mm |
| ADW-COB-24V-480S-8 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 8mm | DC12/24V | 9W/m | 950LM/m | 12V:25mm 24V:50mm |
| ADW-COB-24V-480E-8 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 8mm | DC12V/24V | 9W/m | 950LM/m | 12V:25mm 24V:50mm |
| ADW-COB-24V-480E-10 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 10mm | DC12/24V | 12W/m | 1260LM/m | 12V:25mm 24V:50mm |
| ADW-COB-24V-512E-8 | COB | 2700K/3000K 4000K/6000K | >90 | 512Chips/m | 8mm | DC24V | 10W/m | 1050LM/m | 24V:62.5mm |
| ADW-COB-24V-512E-10 | COB | 2700K/3000K 4000K/6000K | >90 | 512Chips/m | 10mm | DC24V | 14W/m | 1470LM/m | 24V:62.5mm |
Remark: 320S, 480S can be produced by Machine for long length, such as 50meters/roll. But please note: when install the COB LED Strip Light, max 5meters need power in.
All the models can be produced as Red, Gree, Blue, Orange and so on.
Slim COB LED Strip Light: 3mm 4mm 5mm

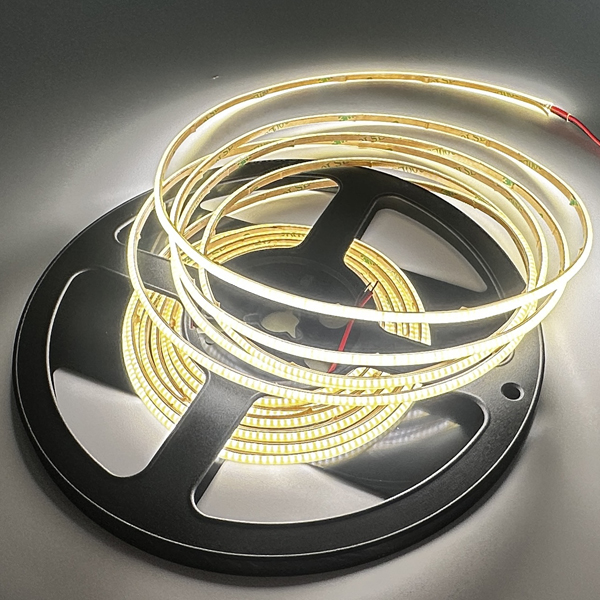

3mm COB LED Strip

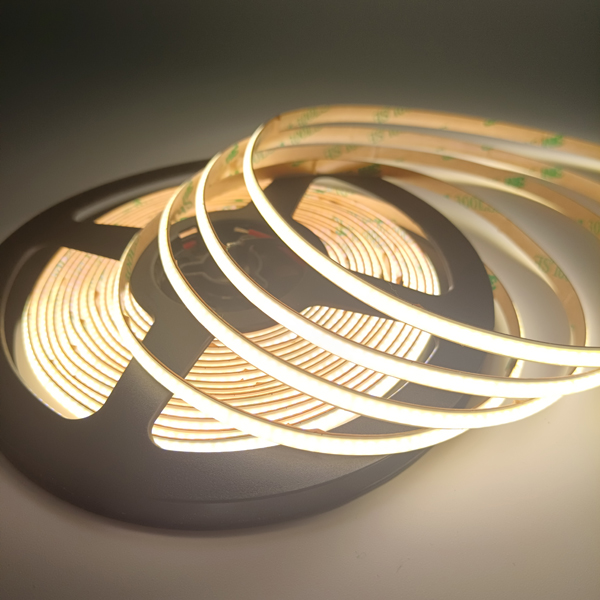

4mm COB LED Strip

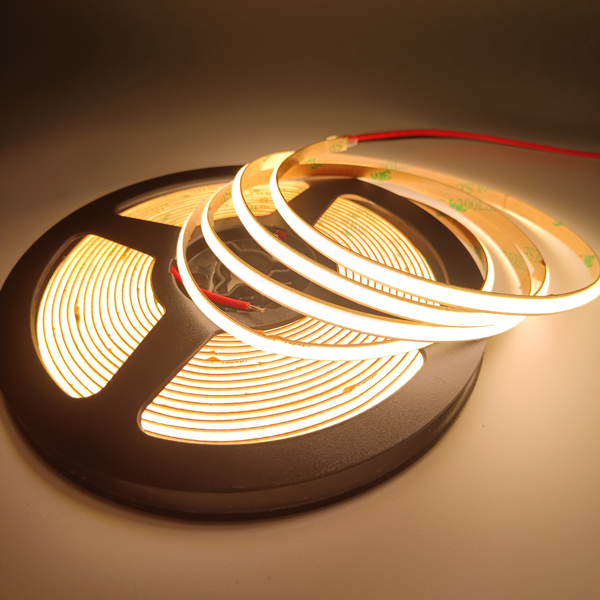

5mm COB LED Strip
Our slim COB LED strip lights are designed for applications where space is limited but high-quality, uniform lighting is essential. With ultra-narrow PCB widths of 3mm, 4mm, and 5mm, these strips can be seamlessly integrated into furniture edges, display cases, signage, and other compact installations.
Each strip features 480 chips per meter with high CRI (>90) for accurate color rendering and smooth, dot-free illumination. Available in DC5V, DC12V, and DC24V versions, they deliver power-efficient performance from 5W/m to 7W/m with lumen output up to 560 lm/m. Cuttable every 12.5mm (12V) or 50mm (24V), they allow precise customization for any project size.
Available in a wide range of colors — including white (2700K, 3000K, 4000K, 6000K) and vibrant single colors such as red, green, blue, and orange — these slim COB LED strips combine versatility, flexibility, and high-end lighting effects in one compact design.
Specifications:
| Model No. | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-480E-3 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 3mm | DC5/12/24V | 5W/m | 400LM/m | 5V: 25mm 12V:12.5mm 24V: 25mm |
| ADW-COB-24V-480E-4 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 4mm | DC12/24V | 6W/m | 480LM/m | 12V:25mm 24V:50mm |
| ADW-COB-24V-480E-5 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 5mm | DC12V/24V | 7W/m | 560LM/m | 12V:25mm 24V:50mm |
Remark: All the models can be produced as Red, Gree, Blue, Orange and so on.

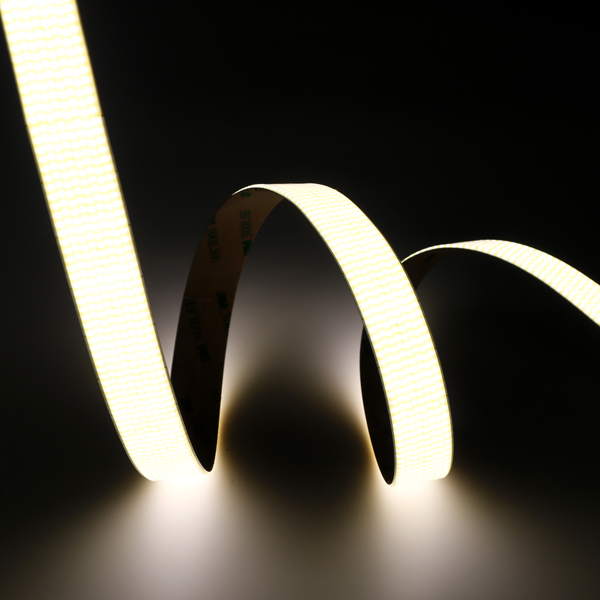

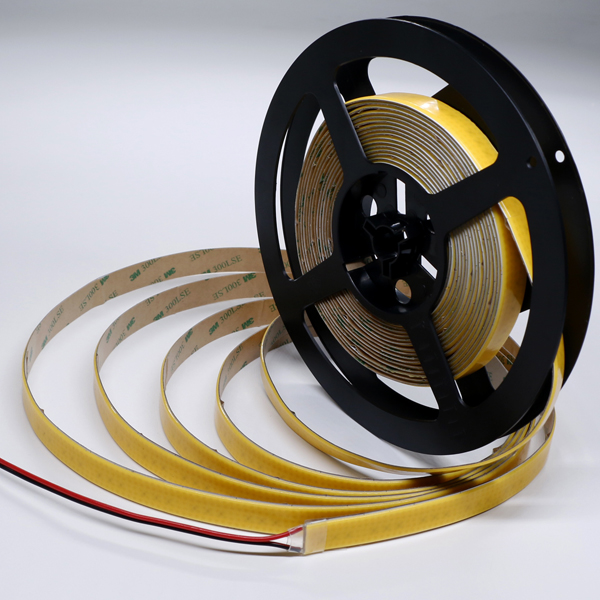

Wide COB LED Strip Light: 10mm 12mm 15mm 20mm

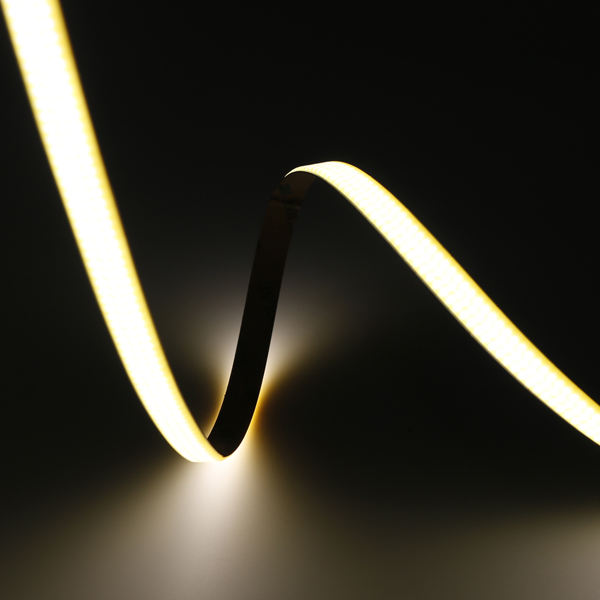

10mm COB LED Strip

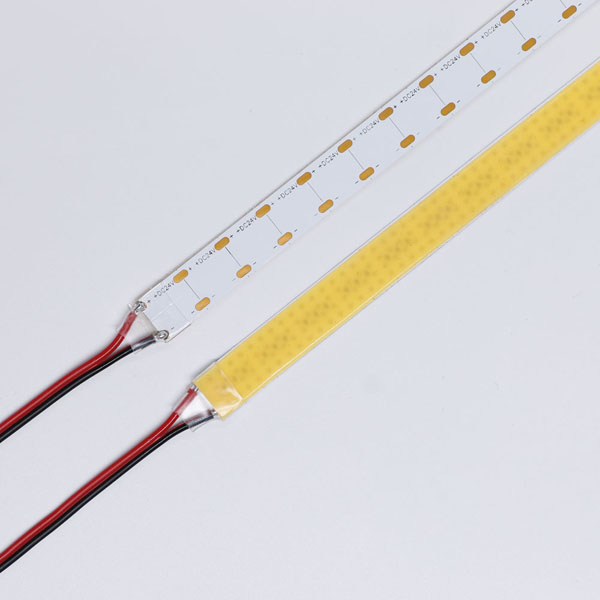

12mm COB LED Strip
15mm COB LED Strip
20mm COB LED Strip
Our wide COB LED strip lights are engineered for high-power and high-brightness applications, offering exceptional heat dissipation and stability. With PCB widths ranging from 10mm to 20mm and ultra-dense chip configurations up to 3072 chips per meter, these strips deliver a smooth, dot-free light output with a high CRI (>90) for precise color rendering.
Operating at DC24V, this series covers power ratings from 14W/m to 30W/m and lumen outputs up to 3300 lm/m, making them ideal for commercial, industrial, and large-scale architectural projects. The wider PCB design ensures optimal thermal management, extending the lifespan of the LEDs even in continuous-use scenarios.
Available in multiple white color temperatures (2700K, 3000K, 4000K, 6000K), our wide COB LED strips provide unmatched brightness and durability for demanding lighting environments.
Specifications:
| Model No. | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-1152P-10 | COB | 2700K/3000K 4000K/6000K | >90 | 1152Chips/m | 10mm | DC24V | 14W/m | 1600LM/m | 24V: 20.67mm |
| ADW-COB-24V-1280P-12 | COB | 2700K/3000K 4000K/6000K | >90 | 1280Chips/m | 12mm | DC24V | 15W/m | 1800LM/m | 24V: 12.5mm |
| ADW-COB-24V-1920P-15 | COB | 2700K/3000K 4000K/6000K | >90 | 1920Chips/m | 15mm | DC24V | 25W/m | 3000LM/m | 24V: 20.67mm |
| ADW-COB-24V-3072P-20 | COB | 2700K/3000K 4000K/6000K | >90 | 3072Chips/m | 20mm | DC24V | 30W/m | 3300LM/m | 24V: 15.5mm |
Mini Cut COB LED Strip Light
Cut Anywhere
Mini Cut
Our Mini Cut and Cut Anywhere COB LED strip lights are designed for maximum flexibility in installation. With extremely short cut intervals — as small as 8.33mm (12V) or 12.5mm (24V) — and a “cut anywhere” option, these strips allow precise length customization to perfectly fit your project needs.
Equipped with 480–512 chips per meter and a high CRI (>90), they deliver smooth, dot-free illumination with accurate color rendering. Available in DC12V and DC24V versions, with wattages from 9W/m to 14W/m and lumen outputs up to 1260 lm/m, they are ideal for fine-detail lighting applications such as retail displays, signage, furniture, and decorative features.
Available in a variety of white color temperatures (2700K, 3000K, 4000K, 6000K), our Mini Cut COB LED strips combine versatility, efficiency, and high-quality light output for both residential and commercial projects.
Specifications:
| Model No. | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-480A-8 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 8mm | DC24V | 9W/m | 700LM/m | Cut Anywhere |
| ADW-COB-24V-480M-8 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 8mm | DC12/24V | 9W/m | 810LM/m | 12V: 8.33mm 24V: 12.5mm |
| ADW-COB-24V-512M-8 | COB | 2700K/3000K 4000K/6000K | >90 | 512Chips/m | 8mm | DC24V | 9W/m | 810LM/m | 24V: 15.62mm |
| ADW-COB-24V-512M-10 | COB | 2700K/3000K 4000K/6000K | >90 | 512Chips/m | 10mm | DC24V | 14W/m | 1260LM/m | 24V: 15.62mm |
Long Run COB LED Strip Light: 10m 15m 20m 30m
Our Long Run COB LED strip lights are designed for extended installations without brightness drop, making them perfect for large-scale commercial and architectural lighting projects. Available in continuous lengths of 5m, 10m, 15m, 20m, and 30m, these strips require only one power supply connection, simplifying wiring and installation.
With high CRI (>90) and chip densities of 360–480 chips per meter, they deliver smooth, dot-free illumination and consistent color performance across the entire run. Operating at DC24V or DC48V, they maintain stable brightness while consuming just 10W/m, with lumen outputs up to 1050 lm/m.
Offered in multiple white color temperatures (2700K, 3000K, 4000K, 6000K), our long run COB LED strips are ideal for hotels, shopping malls, exhibition halls, and any project requiring uniform light over long distances.
Specifications:
| Model No. | Long Run | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-360D-15 | 15meters | COB | 2700K/3000K 4000K/6000K | >90 | 360Chips/m | 10mm | DC24V | 10W/m | 800LM/m | 24V: 50mm |
| ADW-COB-24V-480D-5 | 5meters | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 10mm | DC24V | 10W/m | 1050LM/m | 24V: 50mm |
| ADW-COB-24V-480D-10 | 10meters | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 10mm | DC24V | 10W/m | 1050LM/m | 24V: 50mm |
| ADW-COB-24V-480D-15 | 15meters | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 10mm | DC24V | 10W/m | 900LM/m | 24V: 50mm |
| ADW-COB-24V-480D-20 | 20meters | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 10mm | DC48V | 10W/m | 900LM/m | 48V: 50mm |

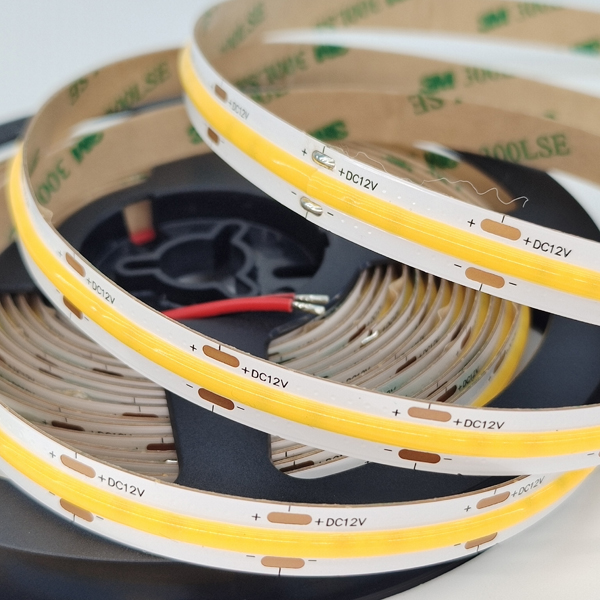

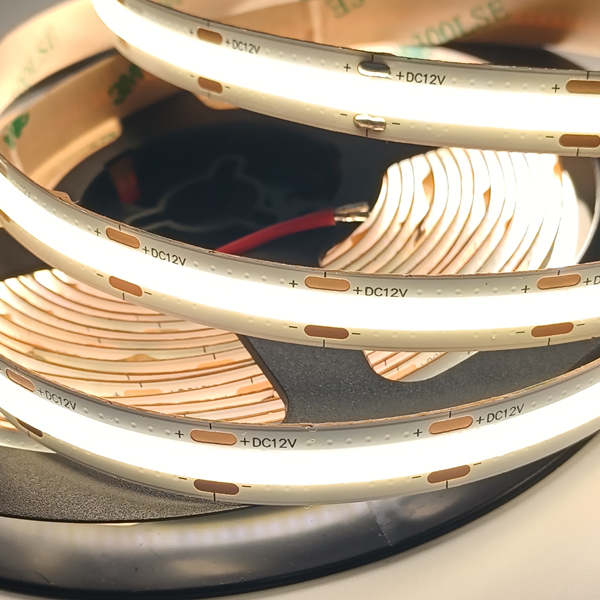

High Brightness COB LED Strip Light: 120LM/W-140LM/W
Our high brightness COB LED strip lights are designed for projects that demand exceptional illumination levels and energy efficiency. With a luminous efficacy of 120–140 lm/W, these strips deliver outstanding brightness while maintaining low power consumption, making them ideal for commercial, industrial, and high-end residential applications.
Featuring 480 chips per meter and a high CRI (>90), they provide smooth, dot-free light output with excellent color rendering. Available in 8mm and 10mm PCB widths, operating at DC24V, and offering lumen outputs up to 1560 lm/m, they are perfect for both direct and indirect lighting installations.
Available in multiple white color temperatures (2700K, 3000K, 4000K, 6000K), our high brightness COB LED strips ensure consistent performance and long lifespan, making them a reliable choice for demanding lighting environments.
Specifications:
| Model No. | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-480H-8 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 8mm | DC24V | 9W/m | 1170LM/m | 24V:50mm |
| ADW-COB-24V-480H-10 | COB | 2700K/3000K 4000K/6000K | >90 | 480Chips/m | 10mm | DC24V | 12W/m | 1560LM | 24V:50mm |
Dual White COB LED Strip Light
Our dual white COB LED strip lights offer flexible color temperature control by combining warm white and cool white LEDs on a single strip. This allows smooth adjustment from a cozy warm glow (2700K) to a bright daylight white (6500K), enabling you to create the perfect ambiance for any space.
Featuring a high CRI (>90) for accurate color rendering, these strips deliver seamless, dot-free illumination ideal for both residential and commercial applications. Compatible with various control systems such as DALI, 0-10V, DMX, or smart controllers, they are perfect for environments that require adaptable lighting — from retail displays to hospitality and office spaces.
Built with premium materials for durability and consistent performance, our dual white COB LED strips are available in multiple PCB widths and voltages, ensuring compatibility with a wide range of installation requirements.
Specifications:
| Model No. | LED Type | Color | CRI | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-608DW-10 | COB | 2700K-6500K | >90 | 608Chips/m | 10mm | DC24V | 11W+11W/m | WW:990LM CW:1320LM | 24V: 26.31mm |
RGB / RGBW / RGB+CCT COB LED Strip Lights
Our RGB, RGBW, and RGB+CCT COB LED strip lights bring vibrant color-changing effects and versatile white lighting options in a single strip. The RGB version delivers millions of dynamic colors, the RGBW adds a dedicated white channel for pure white illumination, and the RGB+CCT version allows both full-color effects and tunable white control (3000K–6000K).
With high-density COB technology (up to 896 chips per meter) and high CRI (>90) white light performance, these strips provide smooth, dot-free illumination for premium visual effects. Available in 10mm or 12mm PCB widths, and operating at DC12V or DC24V, they offer power ratings from 15W/m to 25W/m with precise cut points for easy installation.
Perfect for stage lighting, signage, retail displays, hospitality environments, and architectural projects, our RGB, RGBW, and RGB+CCT COB LED strips combine stunning visual impact with reliable performance.
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Cuttable |
|---|---|---|---|---|---|---|---|
| ADW-COB-24V-480RGB-10 | COB | RGB | 480Chips/m | 10mm | DC12/24V | 15W/m | 12V: 20mm 24V: 50mm |
| ADW-COB-24V-840RGB-10 | COB | RGB | 840Chips/m | 10mm | DC12/24V | 15W/m | 12V: 11.11mm 24V: 25mm |
| ADW-COB-24V-896RGBW-12 | COB | RGBW | 896Chips/m | 12mm | DC24V | 20W/m | 24V: 31.25mm |
| ADW-COB-24V-840RGBCCT-12 | COB | RGB+3000K +6000K | 840Chips/m | 12mm | DC24V | 25W/m | 24V: 41.66mm |

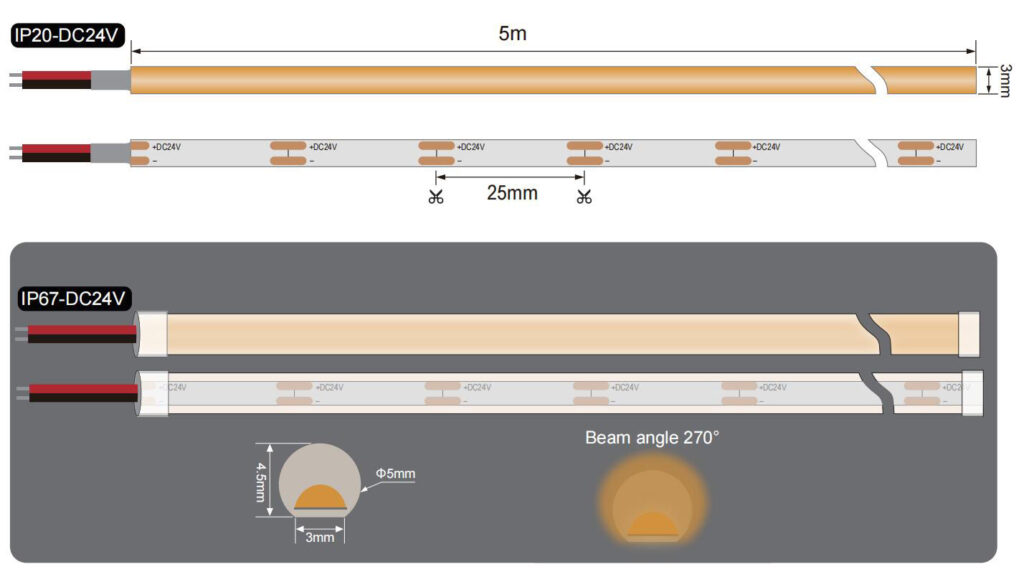

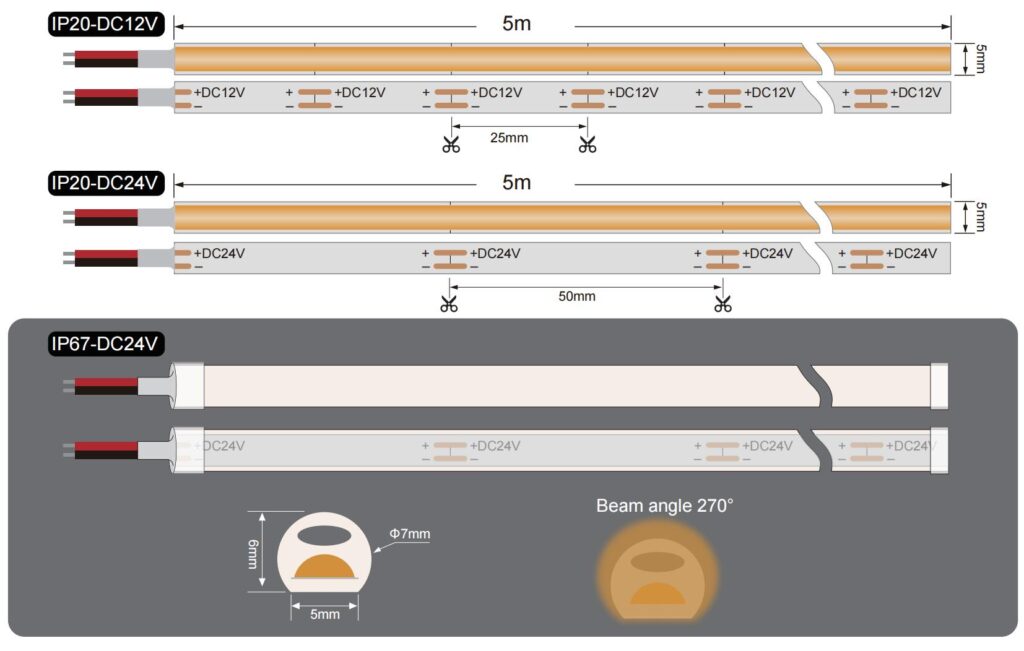

Semi-Circular COB LED Strip: Φ5mm Φ7mm
Our semi-circular COB LED strip lights feature a unique rounded profile that delivers a wide 270° beam angle, ensuring soft and uniform illumination without visible LED dots. With ultra-flexible construction, they can be bent and shaped freely, making them ideal for creative lighting designs, signage, architectural outlines, and decorative features.
Available in Φ5mm and Φ7mm diameters, these strips use 480 chips per meter for smooth, high-CRI lighting in multiple white color temperatures (2700K, 3000K, 4000K, 6000K). Operating at DC12V or DC24V, they offer power ratings of 5W/m or 7W/m, with lumen outputs up to 315 lm/m. Waterproof options (IP20/IP67) are available for both indoor and outdoor use.
Cuttable every 12.5mm (12V) or 25/50mm (24V), our semi-circular COB LED strips combine design flexibility, excellent light quality, and reliable performance for a wide range of applications.
Specifications:
| Model No. | LED Type | Color | LED QTY | Size | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-COB-24V-480-5SC | COB | 2700K/3000K 4000K/6000K | 480Chips/m | Φ5mm | DC12/24V | 5W/m | 225LM/m | 12V:12.5mm 24V:25mm |
| ADW-COB-24V-480-7SC | COB | 2700K/3000K 4000K/6000K | 480Chips/m | Φ7mm | DC12/24V | 7W/m | 315LM/m | 12V:25mm 24V:50mm |
Waterproof COB LED Strip Lights – IP54 / IP65 / IP67 / IP68
Our waterproof COB LED strip lights are designed for reliable performance in outdoor, wet, or humid environments. Available in multiple waterproof levels — IP54 silicone glue covering, IP65 shrink wrap, IP67 silicone sleeve tubing, and IP68 silicone extrusion — they provide long-lasting protection against moisture, dust, and water ingress.
Using high-density COB technology, these strips deliver smooth, dot-free illumination with high CRI (>90) for accurate color rendering. They are available in a range of white color temperatures and vibrant single colors, with flexible cut lengths for easy customization.
Ideal for outdoor architectural lighting, garden and landscape illumination, signage, marine lighting, and other demanding applications, our waterproof COB LED strips combine durability, flexibility, and exceptional light quality for both residential and commercial projects.

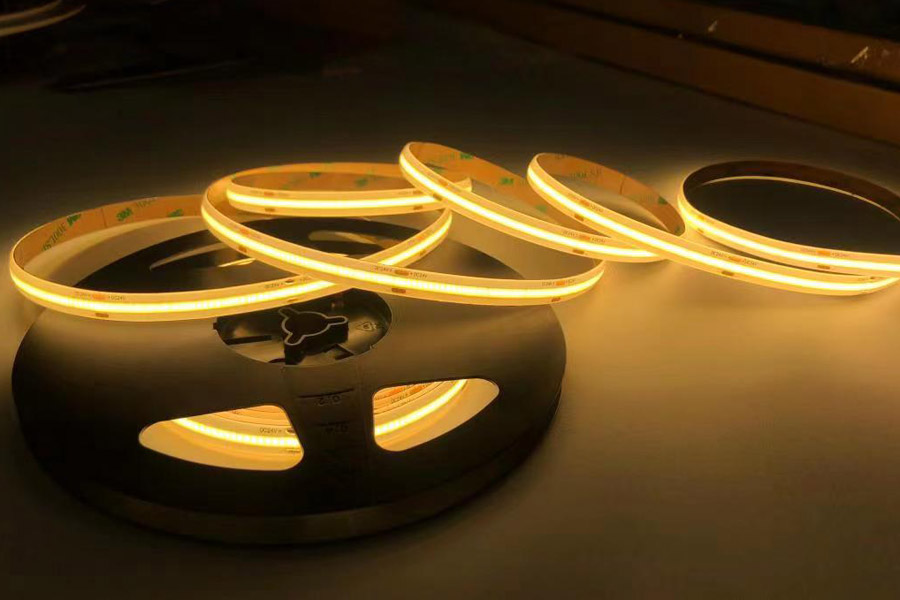

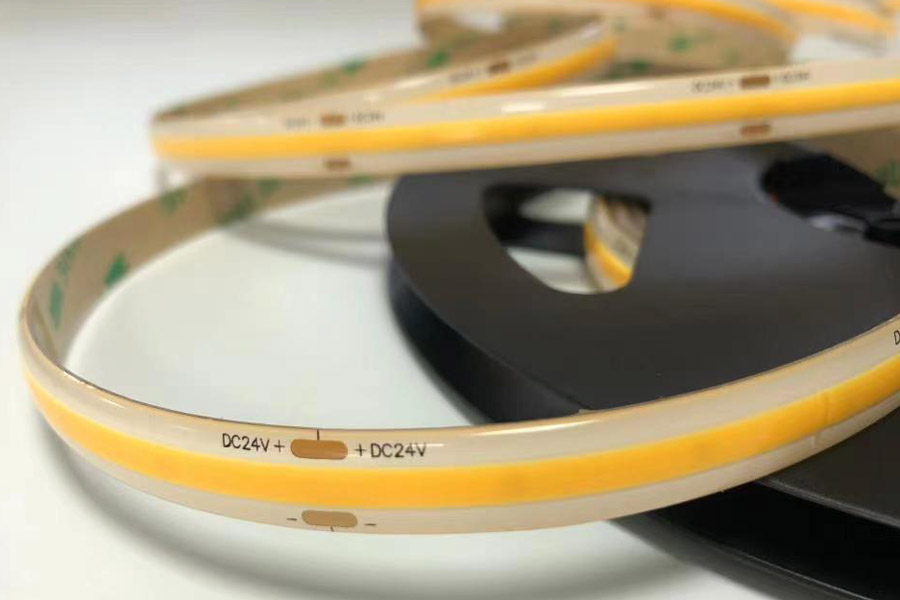

IP54 Silicone Glue Covering Waterproof COB LED Strip:

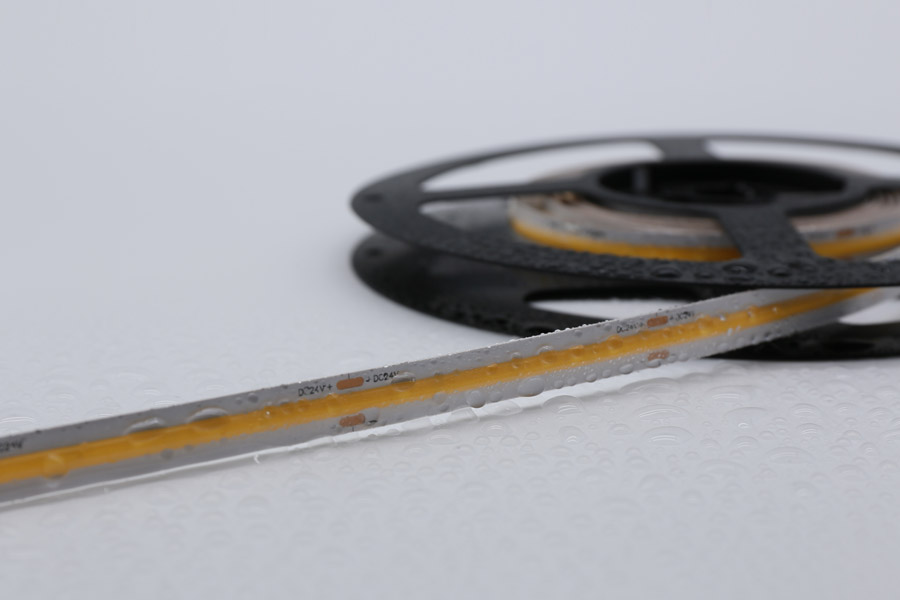

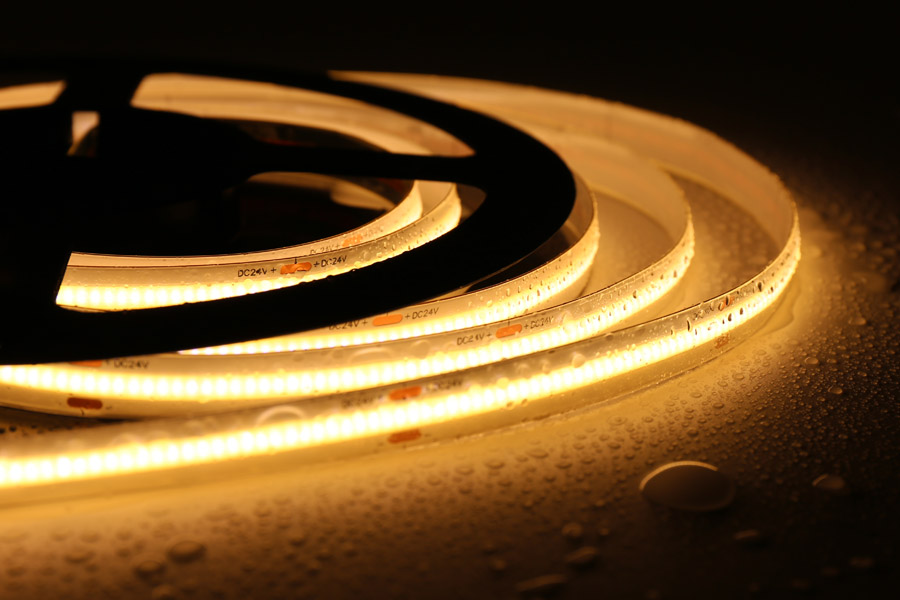

IP65 Shrink Wrap Covering Waterproof COB LED Strip:

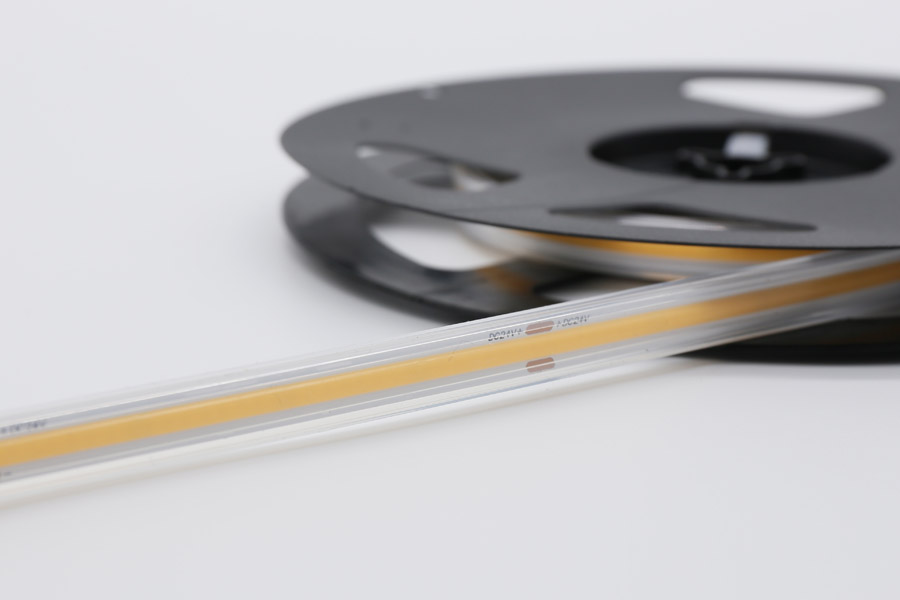

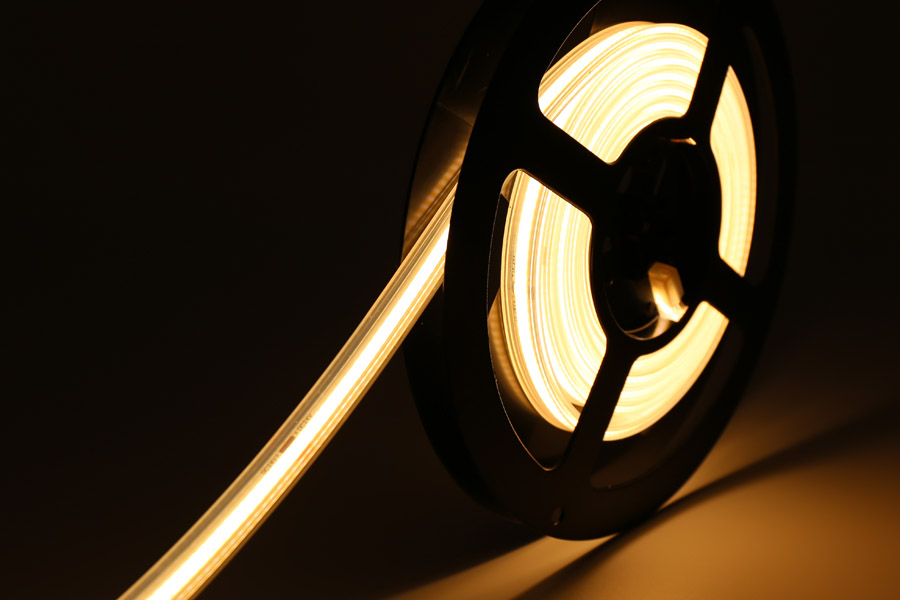

IP67 Silicone Slevee Tube Waterproof COB LED Strip:

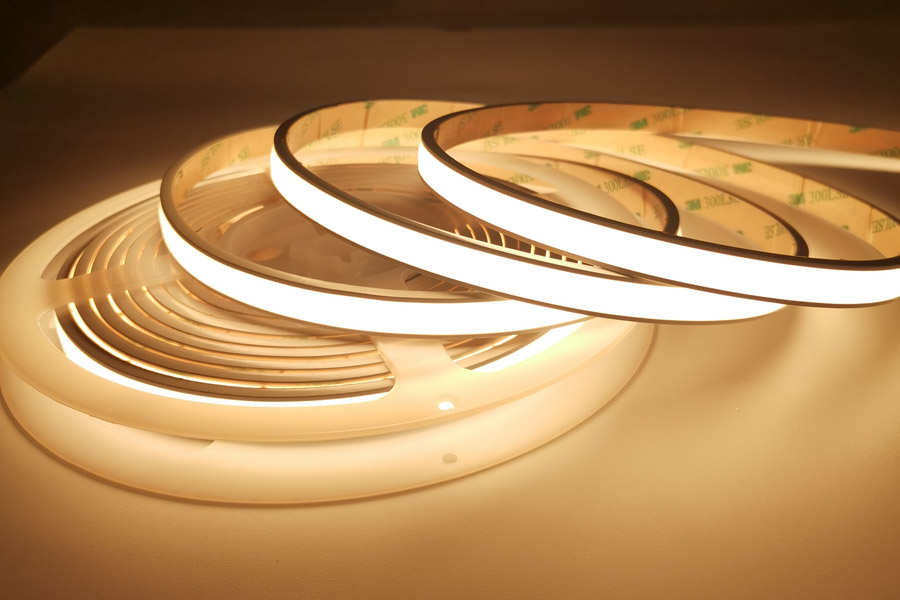

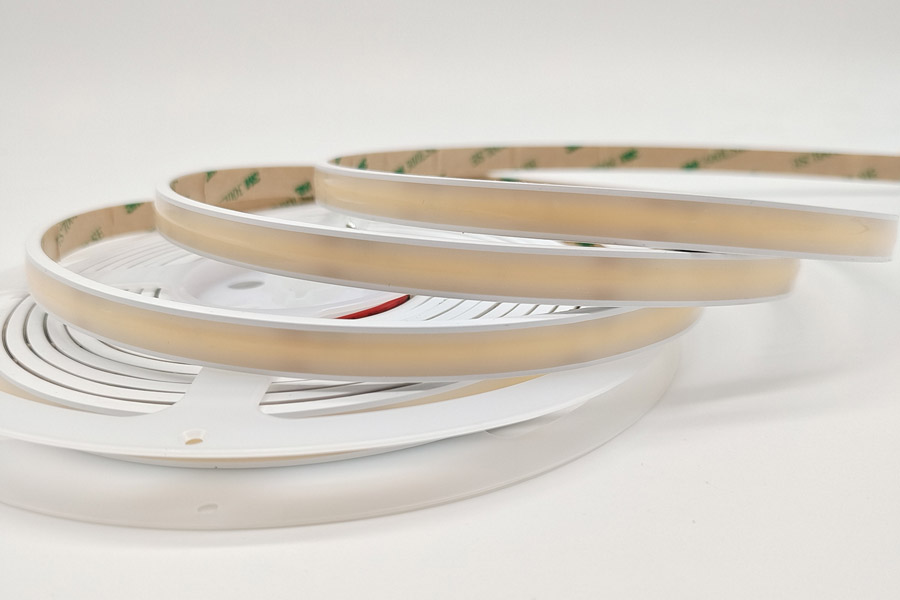

IP68 Slim Silicone Extrusion Waterproof COB LED Strip:
IP68 Silicone Extrusion Waterproof COB LED Strip:
How to produce COB LED Strip Light?
1. Expanding Chips: using an expansion machine, which pulls apart the LED chips attached to the surface of the film and makes it easier to pick and place them onto the PCB.
2. Die Bonding: The expanded LED chips are then die-bonded onto the flexible PCB (FPCB) using specialized equipment.
3. Resistors onto FPCB: The resistors are attached to the FPCB, which will control the amount of current flowing through the LED chips.
4. Reflow: The FPCB, with chips and resistors attached, is subjected to high temperatures over 65 degrees Celsius using a reflow oven.
5. Fluorescent Powder Glue Mixing: A special fluorescent powder glue is mixed to increase the luminosity and color rendering index of the LED strip.
6. Glue Application: The fluorescent powder glue is applied to the surface of the chips and resistors using an automatic glue machine.
7. Oven Curing: The glued COB LED strip is put into an oven to cure the glue and ensure that it adheres to the chips and resistors.
8. QC Testing: The finished COB LED strip is subjected to rigorous quality control testing to ensure it meets the required specifications.
9. Soldering: The PCB is cut into 5-meter reels or cut to the length requested by the customer and is then soldered into the desired configuration.
10. Aging Test, QC Test, Packing, and Shipping: The COB LED strip undergoes an aging test and final QC test before being packaged and shipped to customers. The packaging is designed to protect the COB LED strip during shipping and includes foam padding, bubble wrap, or cardboard boxes as needed.
SMD LED Strip Light:
What is SMD LED Strip Light?
SMD LED strip lights, also known as surface-mount device LED strip lights, are a type of lighting product that utilizes SMD LED technology. SMD refers to the way the LED chips are mounted onto a flexible circuit board.
SMD LED strip lights consist of small LED chips that are soldered onto the surface of the flexible circuit board. The LED chips are typically very small and compact, allowing for a high density of LEDs on the strip. This results in a brighter and more uniform illumination compared to other types of LED strip lights.
One of the advantages of SMD LED strip lights is their versatility. They are available in various sizes, colors, and brightness levels, making them suitable for a wide range of applications. SMD LED strip lights are commonly used for accent lighting, task lighting, decorative lighting, and even for practical purposes such as under-cabinet lighting or backlighting for TVs and monitors.
These LED strip lights are known for their energy efficiency, durability, and long lifespan. They are typically low voltage and can be powered by a DC power source, making them safe and easy to install. SMD LED strip lights often come with adhesive backing, allowing for simple and convenient installation on different surfaces.
Overall, SMD LED strip lights offer a flexible and versatile lighting solution that can be customized to fit various lighting needs. They have gained popularity due to their energy efficiency, brightness, and ability to create dynamic lighting effects in both residential and commercial settings.
There are multiple SMD LED Strip Lights:
Based on the size of SMD LED chips, there are several common types of LED strip lights available:

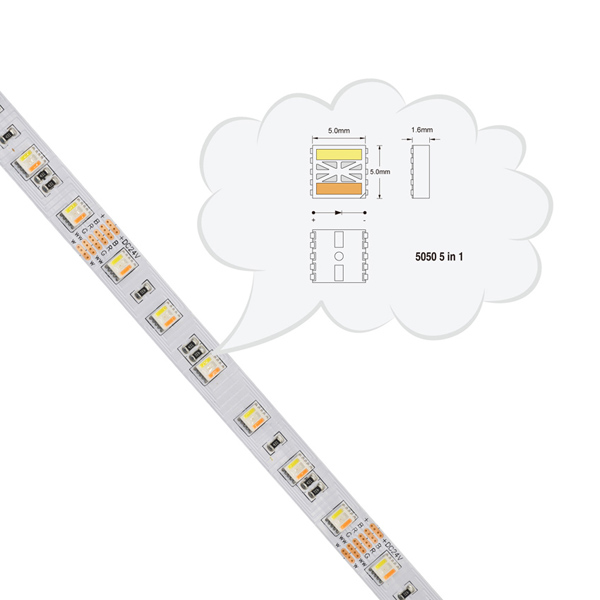

1). 5050 LED Strip Lights: The number “5050” indicates the size of the SMD LED chip, measuring 5.0mm x 5.0mm. These LED strip lights are larger in size and have higher power and brightness compared to 3528 LED strip lights. They are commonly used for general lighting, task lighting, and creating bright and vibrant lighting effects.

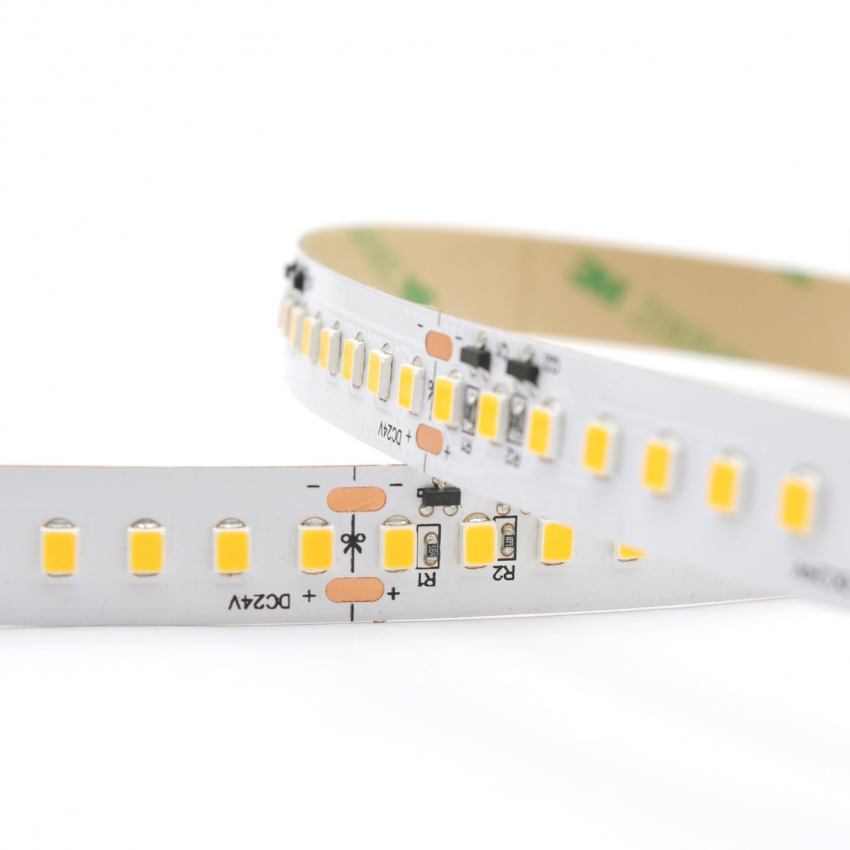

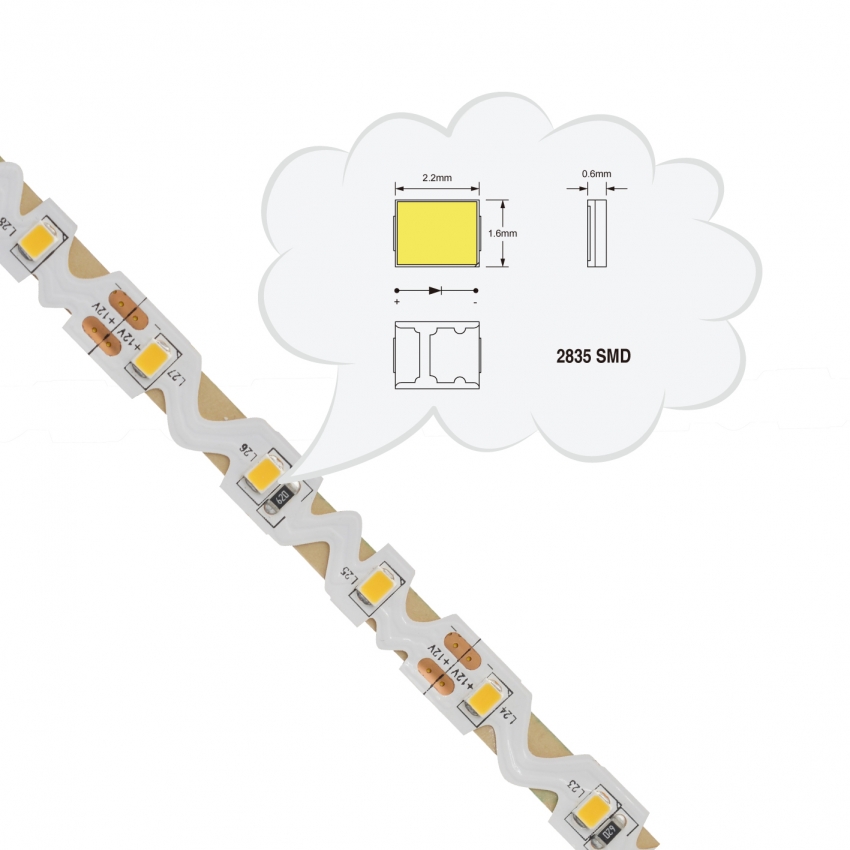

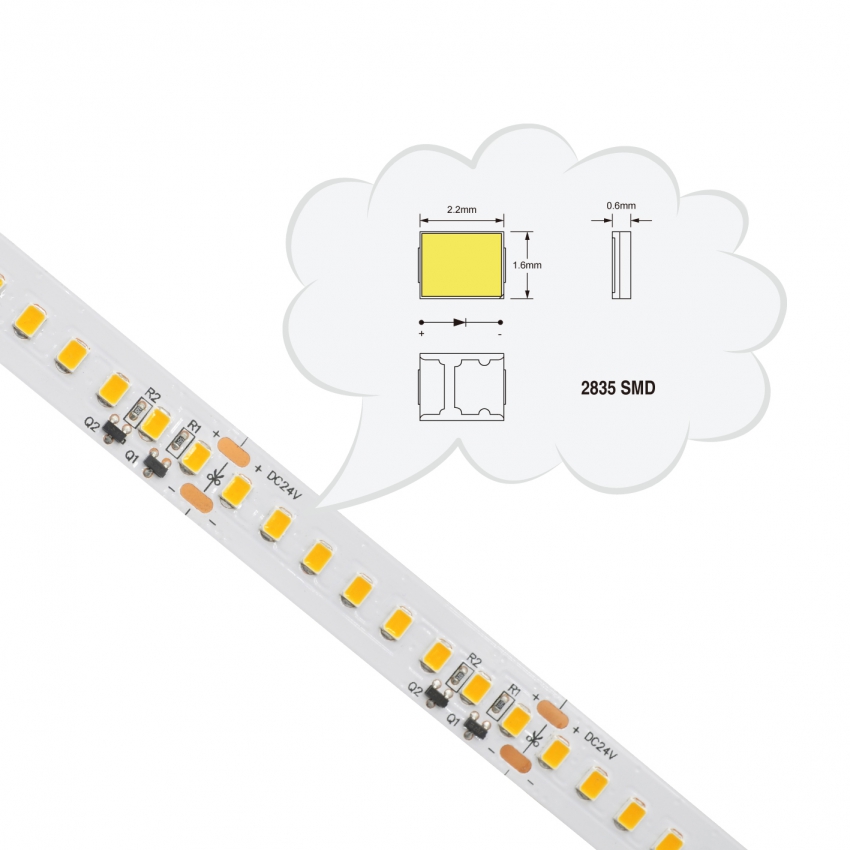

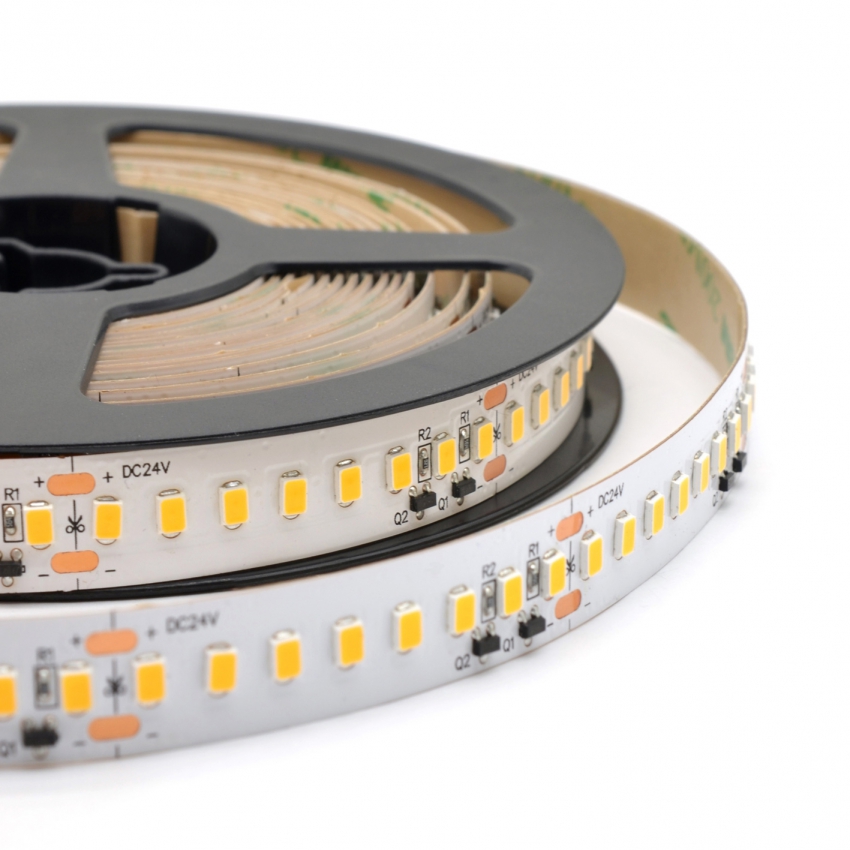

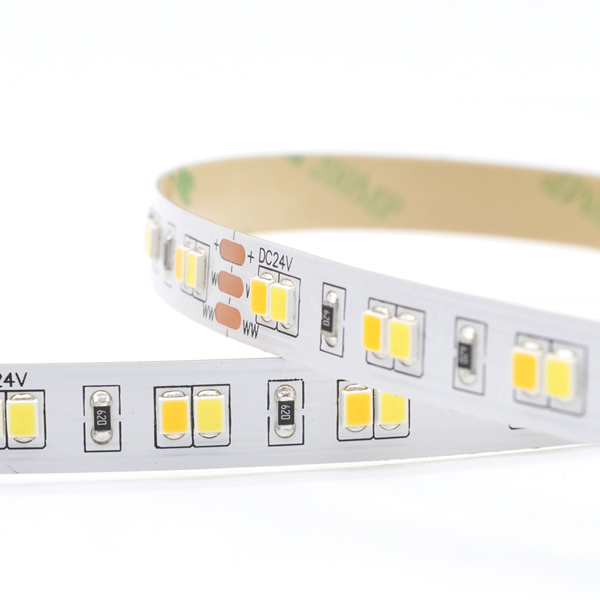

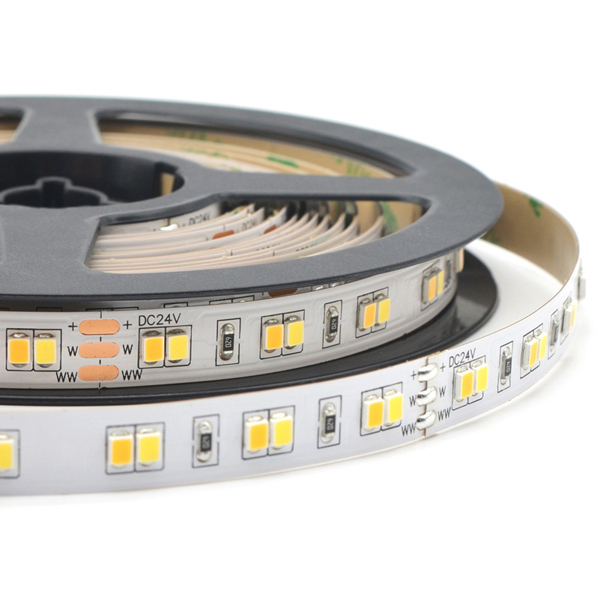

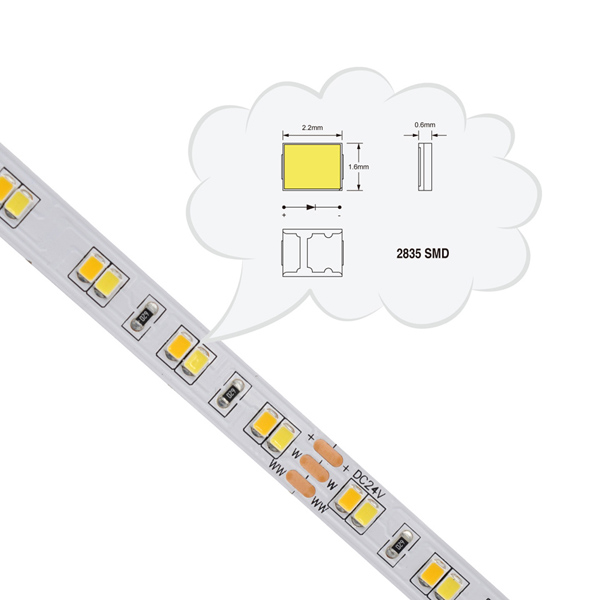

2). 2835 LED Strip Lights: The number “2835” refers to the dimensions of the SMD LED chip, measuring 2.8mm x 3.5mm. These LED strip lights are slightly larger than 3528 LED strip lights and offer higher power and brightness. They are often used in applications where a balance between brightness and compact size is required.
3). 3528 LED Strip Lights: The number “3528” refers to the dimensions of the SMD LED chip, with dimensions of 3.5mm x 2.8mm. These LED strip lights are typically smaller in size and have lower power and brightness compared to larger LED chips. They are commonly used for decorative or accent lighting purposes.
4). 3014 LED Strip Lights: The number “3014” refers to the dimensions of the SMD LED chip, measuring 3.0mm x 1.4mm. These LED strip lights are smaller in size compared to 3528 LED strip lights and are known for their high density of LEDs on the strip. They offer good brightness and are often used for applications where space is limited or a high LED count is required.
5). 5630 LED Strip Lights: The number “5630” indicates the size of the SMD LED chip, measuring 5.6mm x 3.0mm. These LED strip lights are larger than both 3528 and 2835 LED strip lights, offering even higher power and brightness. They are commonly used for applications that require high-intensity lighting, such as commercial lighting and task lighting.

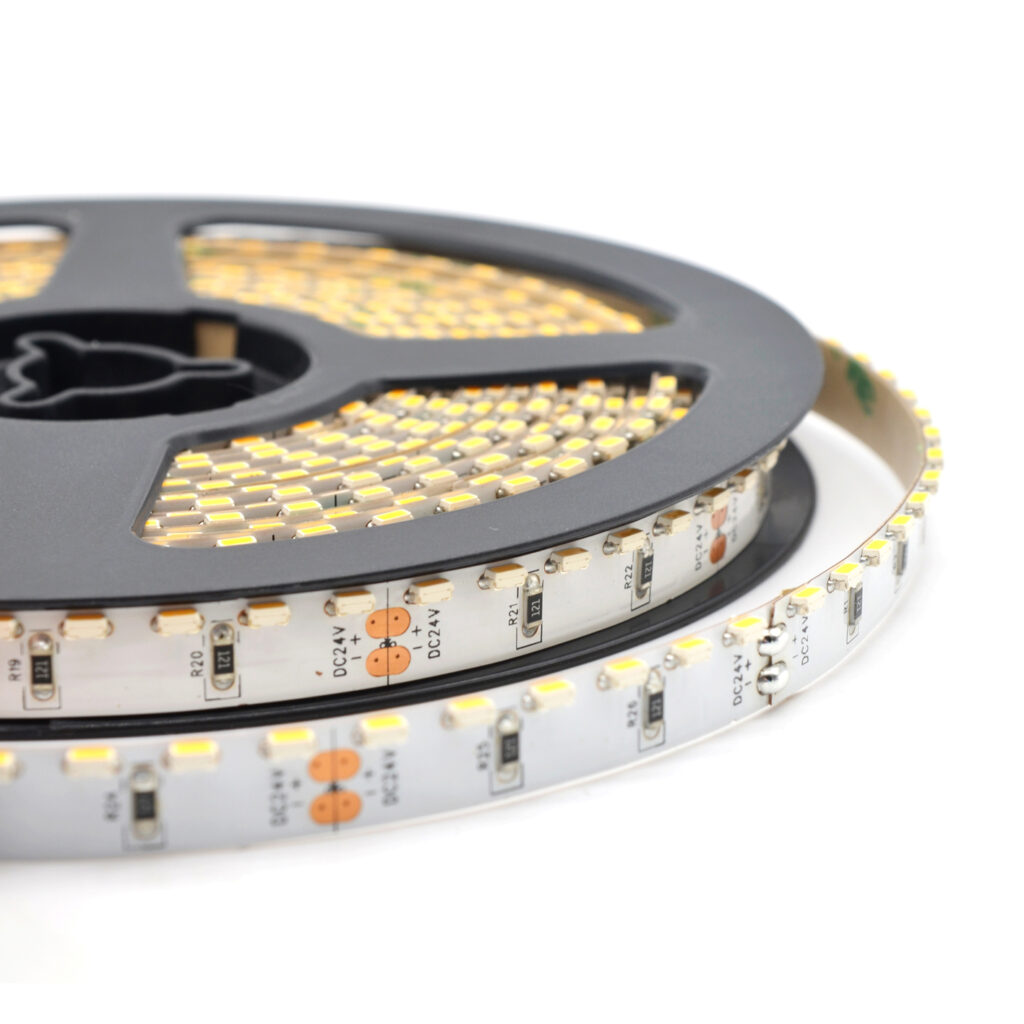

6). Side Emitting LED Strip Lights: Unlike traditional LED strip lights where the light is emitted from the top surface, side emitting LED strip lights emit light from the side. These LED strip lights have special encapsulation that allows light to be diffused along the length of the strip. Side emitting LED strip lights are often used for applications where a unique lighting effect, such as edge lighting or highlighting architectural details, is desired.
7). 2216 LED Strip Lights: The number “2216” indicates the dimensions of the SMD LED chip, measuring 2.2mm x 1.6mm. These LED strip lights are even smaller in size and offer a higher LED density than 3014 LED strip lights. They provide excellent uniformity and are commonly used for applications that require seamless lighting or backlighting for signage and displays.

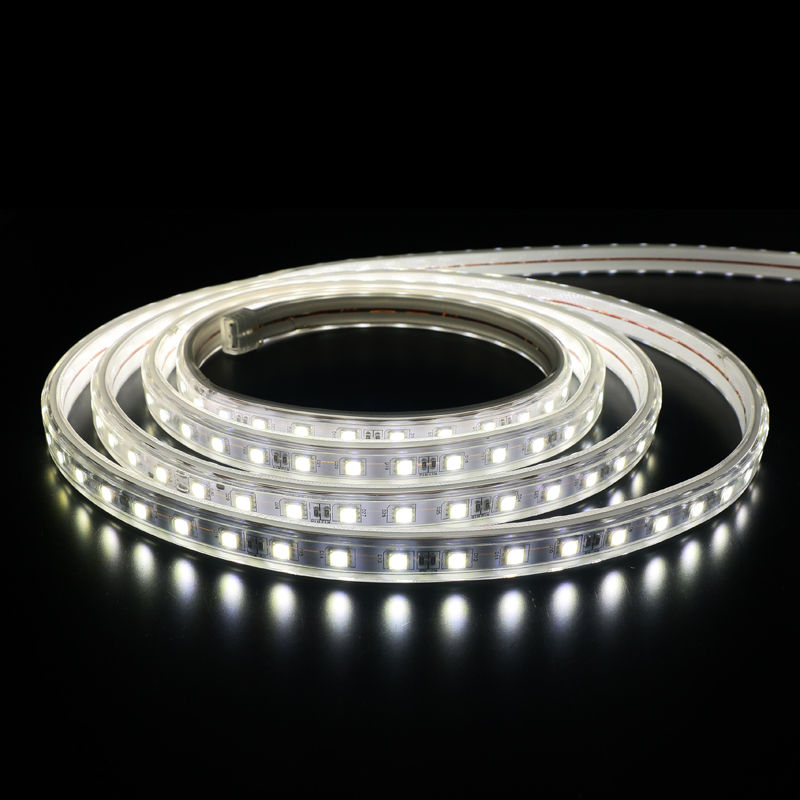

5050SMD LED Strip Light
The 5050 SMD LED strip light series delivers powerful, vivid illumination with excellent color consistency, making it a top choice for residential, commercial, and decorative lighting applications. Featuring large-emitting-surface 5050 SMD LEDs, these strips provide bright and uniform light output, perfect for projects that demand both high brightness and superior visual impact.
Available in densities from 30 LEDs/m to 120 LEDs/m and PCB widths ranging from 8mm to 20mm, the 5050 SMD LED strip light series meets a wide variety of brightness and power requirements. With lumen outputs from 550 LM/m to 2220 LM/m and power consumption from 7.2W/m to 28.8W/m, these strips are highly adaptable to different installation needs. They operate on DC12V or DC24V and feature precise cutting intervals, ensuring flexibility for custom layouts.
Offered in multiple white color temperatures—2700K, 3000K, 4000K, and 6500K—these LED strips are ideal for under-cabinet lighting, retail displays, signage, accent lighting, and large-scale architectural projects where high output and flexibility are essential.
Key Features:
High-brightness 5050 SMD LEDs with large emitting surface
Multiple densities & PCB widths for various applications
Up to 2220 lumens per meter for strong illumination
Custom cuttable for precise installation
Versatile CCT options from warm to cool white
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-5050-24V-30-10 | 5050 | 2700K/3000K 4000K/6500K | 30LEDs/m | 10mm | DC12/24V | 7.2W/m | 550LM/m | 12V:100mm 24V:166.67mm |
| ADW-5050-24V-48-10 | 5050 | 2700K/3000K 4000K/6500K | 48LEDs/m | 10mm | DC12/24V | 11.5W/m | 880LM/m | 12V:62.5mm 24V:125mm |
| ADW-5050-24V-60-8 | 5050 | 2700K/3000K 4000K/6500K | 60LEDs/m | 8mm | DC24V | 14.4W/m | 1110LM/m | 24V:50mm |
| ADW-5050-24V-60-10 | 5050 | 2700K/3000K 4000K/6500K | 60LEDs/m | 10mm | DC12/24V | 14.4W/m | 1110LM/m | 12V:50mm 24V:100mm |
| ADW-5050-24V-60-12 | 5050 | 2700K/3000K 4000K/6500K | 60LEDs/m | 12mm | DC12/24V | 14.4W/m | 1110LM/m | 12V:50mm 24V:100mm |
| ADW-5050-24V-72-10 | 5050 | 2700K/3000K 4000K/6500K | 72LEDs/m | 10mm | DC24V | 17W/m | 1332LM/m | 24V:100mm |
| ADW-5050-24V-96-12 | 5050 | 2700K/3000K 4000K/6500K | 96LEDs/m | 12mm | DC24V | 19.2W/m | 1530LM/m | 24V:62.5mm |
| ADW-5050-24V-120-15 | 5050 | 2700K/3000K 4000K/6500K | 120LEDs/m | 15mm | DC24V | 28.8W/m | 2220LM/m | 24V:50mm |
| ADW-5050-24V-120-20 | 5050 | 2700K/3000K 4000K/6500K | 120LEDs/m | 20mm | DC12/24V | 28.8W/m | 2220LM/m | 12V:50mm 24V:50mm |
2835SMD LED Strip Light
The 2835 SMD LED strip light series offers a cost-effective, high-performance lighting solution for a wide range of applications. Built with compact, high-efficacy 2835 LED chips, these strips provide outstanding lumen output per watt, making them perfect for projects that require both brightness and energy efficiency.
This series is available in densities from 30 LEDs/m to 240 LEDs/m and PCB widths from 5mm to 32mm, supporting a variety of installation needs from narrow channel lighting to wide-surface illumination. With power consumption ranging from 6W/m to 30W/m and brightness levels up to 3000 lumens per meter, it ensures excellent performance in both residential and commercial environments.
Operating at DC5V, DC12V, or DC24V, the 2835 SMD LED strip light comes in multiple white color temperatures—2700K, 3000K, 4000K, and 6500K—to suit different ambiance requirements. Short cut intervals allow for easy customization, making them ideal for under-cabinet lighting, display shelves, signage, cove lighting, and large-scale architectural projects.
Key Features:
High brightness & efficiency with 2835 SMD LED chips
Wide configuration range: multiple densities, voltages, and PCB widths
Up to 3000LM/m for powerful illumination
Flexible cutting lengths for precise installation
Available in warm to cool white CCTs for versatile applications
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-2835-24V-30-8 | 2835 | 2700K/3000K 4000K/6500K | 30LEDs/m | 8mm | DC12/24V | 6W/m | 530LM/m | 12V:100mm 24V:166.67mm |
| ADW-2835-5V-60-5 | 2835 | 2700K/3000K 4000K/6500K | 60LEDs/m | 5mm | DC5V | 8W/m | 600LM/m | 5V:16.67mm |
| ADW-2835-24V-60-5 | 2835 | 2700K/3000K 4000K/6500K | 60LEDs/m | 5mm | DC12/24V | 10W/m | 890LM/m | 12V:50mm 24V:100mm |
| ADW-2835-24V-60-8 | 2835 | 2700K/3000K 4000K/6500K | 60LEDs/m | 8mm | DC12/24V | 12W/m | 1060LM/m | 12V:50mm 24V:100mm |
| ADW-2835-24V-60-10 | 2835 | 2700K/3000K 4000K/6500K | 60LEDs/m | 10mm | DC12/24V | 12W/m | 1060LM/m | 12V:50mm 24V:100mm |
| ADW-2835-24V-70-10 | 2835 | 2700K/3000K 4000K/6500K | 70LEDs/m | 10mm | DC24V | 12W/m | 1230LM/m | 24V:100mm |
| ADW-2835-12V-84-8 | 2835 | 2700K/3000K 4000K/6500K | 84LEDs/m | 8mm | DC12V | 16.8W/m | 1478LM/m | 12V: 35.72mm |
| ADW-2835-24V-84-10 | 2835 | 2700K/3000K 4000K/6500K | 84LEDs/m | 10mm | DC12/24V | 16.8W/m | 1478LM/m | 12V:35.72mm 24V:71.43mm |
| ADW-2835-24V-98-8 | 2835 | 2700K/3000K 4000K/6500K | 98LEDs/m | 8mm | DC24V | 16.8W/m | 1724LM/m | 24V:71.43mm |
| ADW-2835-24V-120-5 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 5mm | DC12/24V | 14.4W/m | 1320LM/m | 12V:25mm 24V:50mm |
| ADW-2835-24V-120-6 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 6mm | DC12/24V | 16.8W/m | 1536LM/m | 12V:25mm 24V:50mm |
| ADW-2835-24V-120-8 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 8mm | DC12/24V | 19.2W/m | 1720LM/m | 12V:25mm 24V:50mm |
| ADW-2835-24V-120-10 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC12/24V | 24W/m | 2110LM/m | 12V:25mm 24V:50mm |
| ADW-2835-24V-140-5 | 2835 | 2700K/3000K 4000K/6500K | 140LEDs/m | 5mm | DC24V | 14.4W/m | 1540LM/m | 24V:50mm |
| ADW-2835-24V-140-10 | 2835 | 2700K/3000K 4000K/6500K | 140LEDs/m | 10mm | DC24V | 24W/m | 2460LM/m | 24V:50mm |
| ADW-2835-24V-144-15 | 2835 | 2700K/3000K 4000K/6500K | 144LEDs/m | 15mm | DC24V | 28.8W/m | 2534LM/m | 24V:83.34mm |
| ADW-2835-24V-168-6 | 2835 | 2700K/3000K 4000K/6500K | 168LEDs/m | 6mm | DC12/24V | 10W/m | 940LM/m | 12V:17.86mm 24V:35.72mm |
| ADW-2835-24V-168-20 | 2835 | 2700K/3000K 4000K/6500K | 168LEDs/m | 20mm | DC24V | 30W/m | 2670LM/m | 24V:35.72mm |
| ADW-2835-24V-180-5 | 2835 | 2700K/3000K 4000K/6500K | 180LEDs/m | 5mm | DC24V | 14.4W/m | 1322LM/m | 24V:33.34mm |
| ADW-2835-24V-180-8 | 2835 | 2700K/3000K 4000K/6500K | 180LEDs/m | 8mm | DC24V | 14.4W/m | 1322LM/m | 24V:33.34mm |
| ADW-2835-24V-180-10 | 2835 | 2700K/3000K 4000K/6500K | 180LED/m | 10mm | DC24V | 24W/m | 2190LM/m | 24V:33.34mm |
| ADW-2835-24V-182-10 | 2835 | 2700K/3000K 4000K/6500K | 182LEDs/m | 10mm | DC24V | 24W/m | 2520LM/m | 24V:38.47mm |
| ADW-2835-24V-182-32 | 2835 | 2700K/3000K 4000K/6500K | 182LEDs/m | 32mm | DC24V | 25W/m | 2620LM/m | 24V:38.47mm |
| ADW-2835-24V-240-10 | 2835 | 2700K/3000K 4000K/6500K | 240LEDs/m | 10mm | DC24V | 24W/m | 2200LM/m | 24V:25mm |
| ADW-2835-5V-120C-10 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC5V | 12W/m | 930LM/m | 5V:8.34mm |
| ADW-2835-12V-120C-10 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC12V | 14W/m | 1400LM/m | 12V:8.34mm |
| ADW-2835-24V-120C-10 | 2835 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC24V | 19W/m | 1750LM/m | 24V:8.34mm |
High Brightness LED Strip Light: 160LM/W, 180LM/W
The High Brightness 2835 SMD LED strip light series is designed for projects requiring exceptional luminous efficiency and maximum light output. Featuring premium 2835 LED chips, these strips achieve up to 180 lumens per watt and deliver a bright, uniform glow with superior thermal management, making them ideal for energy-efficient, high-output lighting applications.
Available in densities from 64 LEDs/m to 160 LEDs/m, this series operates on DC24V and produces up to 3780 lumens per meter while consuming only 21W/m. The standard 10mm PCB width and short cutting intervals (as small as 50mm) allow for easy installation in both linear and custom-shaped layouts.
With a color temperature range from 2700K to 6500K, these high lumen LED strips can suit a variety of environments, from warm ambient lighting to bright daylight illumination. Their high efficacy and long-term reliability make them an excellent choice for commercial, retail, warehouse, and industrial lighting projects.
Key Features:
Ultra-high efficiency: 160–180LM/W for maximum brightness with minimal energy use
Premium 2835 SMD chips for superior performance and uniformity
Wide density range for versatile applications
Short cut points for flexible installation
Multiple CCT options to match different lighting needs
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Light Efficiency | Cuttable |
|---|---|---|---|---|---|---|---|---|---|
| ADW-2835H6-24V-64-10 | 2835 | 2700K/3000K 4000K/6500K | 64LEDs/m | 10mm | DC24V | 9.6W/m | 1536LM/m | 160LM/W | 24V:125mm |
| ADW-2835H8-24V-64-10 | 2835 | 2700K/3000K 4000K/6500K | 64LEDs/m | 10mm | DC24V | 9.6W/m | 1728LM/m | 180LM/W | 24V:125mm |
| ADW-2835H6-24V-80-10 | 2835 | 2700K/3000K 4000K/6500K | 80LEDs/m | 10mm | DC24V | 12W/m | 1920LM/m | 160LM/W | 24V:100mm |
| ADW-2835H8-24V-80-10 | 2835 | 2700K/3000K 4000K/6500K | 80LEDs/m | 10mm | DC24V | 12W/m | 2160LM/m | 180LM/W | 24V:100mm |
| ADW-2835H6-24V-128-10 | 2835 | 2700K/3000K 4000K/6500K | 128LEDs/m | 10mm | DC24V | 18W/m | 2880LM/m | 160LM/W | 24V:62.5mm |
| ADW-2835H8-24V-128-10 | 2835 | 2700K/3000K 4000K/6500K | 128LEDs/m | 10mm | DC24V | 18W/m | 3240LM/m | 180LM/W | 24V:62.5mm |
| ADW-2835H6-24V-160-10 | 2835 | 2700K/3000K 4000K/6500K | 160LEDs/m | 10mm | DC24V | 21W/m | 3360LM/m | 160LM/W | 24V:50mm |
| ADW-2835H8-24V-160-10 | 2835 | 2700K/3000K 4000K/6500K | 160LEDs/m | 10mm | DC24V | 21W/m | 3780LM/m | 180LM/W | 24V:50mm |
3528SMD LED Strip Light
The 3528 SMD LED strip light series offers an affordable, energy-efficient, and versatile solution for both residential and commercial lighting applications. Equipped with compact 3528 SMD chips, these strips provide a smooth and uniform light output, making them ideal for accent lighting, under-cabinet illumination, signage, and architectural highlights.
Available in multiple densities from 30 LEDs/m to 480 LEDs/m and PCB widths ranging from 5mm to 28mm, the 3528 series offers a wide selection to meet diverse project needs. With color temperature options of 2700K, 3000K, 4000K, and 6500K, users can achieve the perfect ambiance, from warm and cozy tones to bright daylight illumination.
These LED strips operate on DC12V or DC24V with wattage options from 2.4W/m to 38.4W/m, delivering up to 3110 lumens per meter. Flexible cut points allow easy customization, ensuring a precise fit for any installation.
Key Features:
Cost-effective, energy-saving 3528 SMD LEDs
Multiple densities and widths for versatile applications
Wide CCT range for customized lighting environments
High luminous efficiency with low power consumption
Flexible cuttable design for easy installation
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-3528-24V-30-8 | 3528 | 2700K/3000K 4000K/6500K | 30LEDs/m | 8mm | DC12/24V | 2.4W/m | 195LM/m | 12V:100mm 24V:166mm |
| ADW-3528-12V-48-8 | 3528 | 2700K/3000K 4000K/6500K | 48LEDs/m | 8mm | DC12V | 3.8W/m | 307LM/m | 12V:62.5mm |
| ADW-3528-24V-60-5 | 3528 | 2700K/3000K 4000K/6500K | 60LEDs/m | 5mm | DC12/24V | 4.8W/m | 388LM/m | 12V:50mm 24V:100mm |
| ADW-3528-24V-60-8 | 3528 | 2700K/3000K 4000K/6500K | 60LEDs/m | 8mm | DC12/24V | 4.8W/m | 388LM/m | 12V:50mm 24V:100mm |
| ADW-3528-24V-60-10 | 3528 | 2700K/3000K 4000K/6500K | 60LEDs/m | 10mm | DC12/24V | 4.8W/m | 388LM/m | 12V:50mm 24V:100mm |
| ADW-3528-24V-96-8 | 3528 | 2700K/3000K 4000K/6500K | 96LEDs/m | 8mm | DC12/24V | 7.6W/m | 615LM/m | 12V:31.25mm 24V:62.5mm |
| ADW-3528-24V-120-5 | 3528 | 2700K/3000K 4000K/6500K | 120LEDs/m | 5mm | DC12/24V | 9.6W/m | 770LM/m | 12V:25mm 24V:50mm |
| ADW-3528-24V-120-8 | 3528 | 2700K/3000K 4000K/6500K | 120LEDs/m | 8mm | DC12/24V | 9.6W/m | 770LM/m | 12V:25mm 24V:50mm |
| ADW-3528-24V-120-10 | 3528 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC12/24V | 9.6W/m | 770LM/m | 12V:25mm 24V:50mm |
| ADW-3528-24V-140-10 | 3528 | 2700K/3000K 4000K/6500K | 140LEDs/m | 10mm | DC24V | 9.6W/m | 910LM/m | 24V:50mm |
| ADW-3528-24V-180-10 | 3528 | 2700K/3000K 4000K/6500K | 180LEDs/m | 10mm | DC24V | 14.4W/m | 1166LM/m | 24V:33.33mm |
| ADW-3528-24V-240-10 | 3528 | 2700K/3000K 4000K/6500K | 240LEDs/m | 10mm | DC12/24V | 19.2W/m | 1555LM/m | 12V:12.5mm 24V:25mm |
| ADW-3528-24V-240-15 | 3528 | 2700K/3000K 4000K/6500K | 240LEDs/m | 15mm | DC12/24V | 19.2W/m | 1555LM/m | 12V:25mm 24V:50mm |
| ADW-3528-24V-360-20 | 3528 | 2700K/3000K 4000K/6500K | 360LEDs/m | 20mm | DC12/24V | 28.8W/m | 2332LM/m | 12V:16.66mm 24V:16.66mm |
| ADW-3528-24V-480-28 | 3528 | 2700K/3000K 4000K/6500K | 480LEDs/m | 28mm | DC24V | 38.4W/m | 3110LM/m | 24V:50mm |
3014SMD LED Strip Light
The 3014 SMD LED strip light is designed for applications that require a compact size with high brightness and consistent color output. Featuring 3014 SMD LEDs in multiple densities ranging from 60 LEDs/m to 240 LEDs/m, this series offers a balance between efficiency, flexibility, and illumination quality.
With color temperature options of 2700K, 3000K, 4000K, and 6500K, the 3014 strip delivers precise lighting for a wide range of environments, from warm and cozy interiors to bright and functional workspaces. The strips operate on DC12V or DC24V and are available in various PCB widths (5mm, 8mm, 10mm) to suit different installation needs.
These strips offer up to 2160 lumens per meter while maintaining excellent energy efficiency. They can be cut at short intervals for custom lengths, making them ideal for retail lighting, cabinet illumination, architectural outlines, and decorative accents.
Key Features:
High-efficiency 3014 SMD LEDs with uniform brightness
Multiple densities and PCB widths for versatile applications
Wide CCT range from warm white to cool daylight
Operates on DC12V/24V with low heat generation
Flexible and easy to cut for precise installations
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-3014-24V-60-8 | 3014 | 2700K/3000K 4000K/6500K | 60LEDs/m | 8mm | DC12/24V | 7.2W/m | 640LM/m | 12V:50mm 24V:100mm |
| ADW-3014-24V-70-8 | 3014 | 2700K/3000K 4000K/6500K | 70LEDs/m | 8mm | DC24V | 7.2W/m | 750LM/m | 24V:100mm |
| ADW-3014-24V-120-5 | 3014 | 2700K/3000K 4000K/6500K | 120LEDs/m | 5mm | DC12/24V | 12W/m | 1080LM/m | 12V:25mm 24V:50mm |
| ADW-3014-24V-120-8 | 3014 | 2700K/3000K 4000K/6500K | 120LEDs/m | 8mm | DC12/24V | 12W/m | 1080LM/m | 12V:25mm 24V:50mm |
| ADW-3014-24V-140-10 | 3014 | 2700K/3000K 4000K/6500K | 140LEDs/m | 10mm | DC24V | 14.4W/m | 1498LM/m | 24V:50mm |
| ADW-3014-24V-204-10 | 3014 | 2700K/3000K 4000K/6500K | 204LEDs/m | 10mm | DC12/24V | 20.4W/m | 1836LM/m | 12V:14.7mm 24V:29.4mm |
| ADW-3014-24V-240-10 | 3014 | 2700K/3000K 4000K/6500K | 240LEDs/m | 10mm | DC24V | 24W/m | 2160LM/m | 12V:12.5mm 24V:25mm |
5630SMD LED Strip Light
Our 5630 SMD LED strip lights deliver outstanding brightness and efficiency, making them ideal for applications that demand high lumen output. Equipped with premium 5630 LED chips, this series offers superior light performance with luminous efficacy up to 4650 lm/m, perfect for both residential and commercial projects.
Available in multiple densities from 30 LEDs/m to 240 LEDs/m, and operating on DC12V or DC24V, these LED strips cover a wide range of lighting needs – from accent and task lighting to large-area illumination. PCB widths from 10mm to 15mm ensure optimal heat dissipation and long lifespan, while the flexible design and precise cut points allow for easy customization during installation.
With color temperature options from 2700K warm white to 6500K cool white, our 5630 LED strips produce vibrant, high-CRI light suitable for architectural lighting, display lighting, signage, and other high-output requirements.
Key Features:
High-output 5630 SMD LEDs for maximum brightness
Multiple densities & PCB widths to match various applications
Wide voltage compatibility: DC12V & DC24V
Flexible design with short cutting intervals for easy installation
Available in 2700K, 3000K, 4000K, and 6500K
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-5630-12V-30-10 | 5630 | 2700K/3000K 4000K/6500K | 30LEDs/m | 10mm | DC12V | 7.2W/m | 825LM/m | 12V:100mm |
| ADW-5630-24V-60-10 | 5630 | 2700K/3000K 4000K/6500K | 60LEDs/m | 10mm | DC12/24V | 14.4W/m | 1650LM/m | 12V:50mm 24V:100mm |
| ADW-5630-24V-72-10 | 5630 | 2700K/3000K 4000K/6500K | 72LEDs/m | 10mm | DC24V | 17.2W/m | 1960LM/m | 24V:83.33mm |
| ADW-5630-24V-120-10 | 5630 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC24V | 24W/m | 2784LM/m | 24V:50mm |
| ADW-5630-24V-120-15 | 5630 | 2700K/3000K 4000K/6500K | 120LEDs/m | 15mm | DC24V | 28.8W/m | 3283LM/m | 24V:50mm |
| ADW-5630-24V-240-15 | 5630 | 2700K/3000K 4000K/6500K | 240LEDs/m | 15mm | DC24V | 38.4W/m | 4650LM/m | 24V:25mm |
2216SMD LED Strip Light
Our 2216 SMD LED strip lights feature ultra-small LED chips with high packing density, delivering uniform illumination without visible light spots. Designed for applications that demand smooth linear lighting and excellent color consistency, these strips are ideal for premium architectural, display, and furniture lighting projects.
With LED densities up to 420 LEDs/m and cuttable intervals as short as 14.28mm, the 2216 series offers exceptional flexibility for precise installation. Operating on DC24V and available in various PCB widths, they provide stable performance with low heat generation and a long lifespan.
Available in color temperatures from 2700K warm white to 6500K cool white, the 2216 LED strips produce soft, comfortable lighting with high CRI for accurate color rendering, making them suitable for hospitality, retail, and residential environments.
Key Features:
High-density 2216 SMD LEDs for dot-free illumination
Multiple densities from 120 to 420 LEDs/m for different applications
Ultra-short cutting intervals for precision installations
Low profile and flexible PCB for easy integration
Available in 2700K, 3000K, 4000K, and 6500K
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-2216-24V-120-10 | 2216 | 2700K/3000K 4000K/6500K | 120LEDs/m | 10mm | DC24V | 9.6W/m | 750LM/m | 24V:50mm |
| ADW-2216-24V-180-10 | 2216 | 2700K/3000K 4000K/6500K | 180LEDs/m | 10mm | DC24V | 14.4W/m | 1123LM/m | 24V:33.33mm |
| ADW-2216-24V-240-5 | 2216 | 2700K/3000K 4000K/6500K | 240LEDs/m | 5mm | DC24V | 10W/m | 890LM/m | 24V:25mm |
| ADW-2216-24V-240-10 | 2216 | 2700K/3000K 4000K/6500K | 240LEDs/m | 10mm | DC24V | 19.2W/m | 1500LM/m | 24V:25mm |
| ADW-2216-24V-300-10 | 2216 | 2700K/3000K 4000K/6500K | 300LEDs/m | 10mm | DC24V | 20W/m | 1700LM/m | 24V:20mm |
| ADW-2216-24V-420-10 | 2216 | 2700K/3000K 4000K/6500K | 420LEDs/m | 10mm | DC24V | 24W/m | 2050LM/m | 24V:14.28mm |
3014 Side Emitting LED Strip Light
The 3014 side emitting LED strip light series is engineered for creative lighting applications where illumination is required from the side rather than the top. Featuring high-quality 3014 SMD LEDs and precise optical design, these strips deliver smooth, uniform side lighting ideal for curved surfaces, signage, decorative outlines, and architectural accents.
Available in 2700K, 3000K, 4000K, and 6500K, the 3014 side emitting strips offer excellent color consistency and high CRI, ensuring accurate color reproduction. With densities from 60 to 120 LEDs/m and flexible 8mm or 10mm PCBs, they provide versatile installation options for both commercial and residential projects.
The side-view design allows light to emit at a wide angle, making them perfect for edge lighting acrylic panels, cove lighting, channel letters, and contour highlights. Operated at DC12V or DC24V, they offer stable performance, low heat generation, and long service life.
Key Features:
Side-emitting design for unique lighting effects
Multiple densities (60, 84, 120 LEDs/m) for varied brightness needs
Flexible PCB for easy bending and installation
High color consistency in multiple CCT options
Ideal for signage, edge lighting, and decorative outlines
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-3014-24V-60E-8 | 3014 | 2700K/3000K 4000K/6500K | 60LEDs/m | 8mm | DC12/24V | 6W/m | 588LM/m | 12V:50mm 24V:100mm |
| ADW-3014-24V-84E-10 | 3014 | 2700K/3000K 4000K/6500K | 84LEDs/m | 10mm | DC24V | 8.4W/m | 823LM/m | 24V:71.42mm |
| ADW-3014-24V-120E-8 | 3014 | 2700K/3000K 4000K/6500K | 120LEDs/m | 8mm | DC12/24V | 12W/m | 1176LM/m | 12V:25mm 24V:50mm |
| ADW-3014-24V-156E-10 | 3014 | 2700K/3000K 4000K/6500K | 156LEDs/m | 10mm | DC12/24V | 15.6W/m | 1528LM/m | 12V:19.2mm 24V:38.5mm |

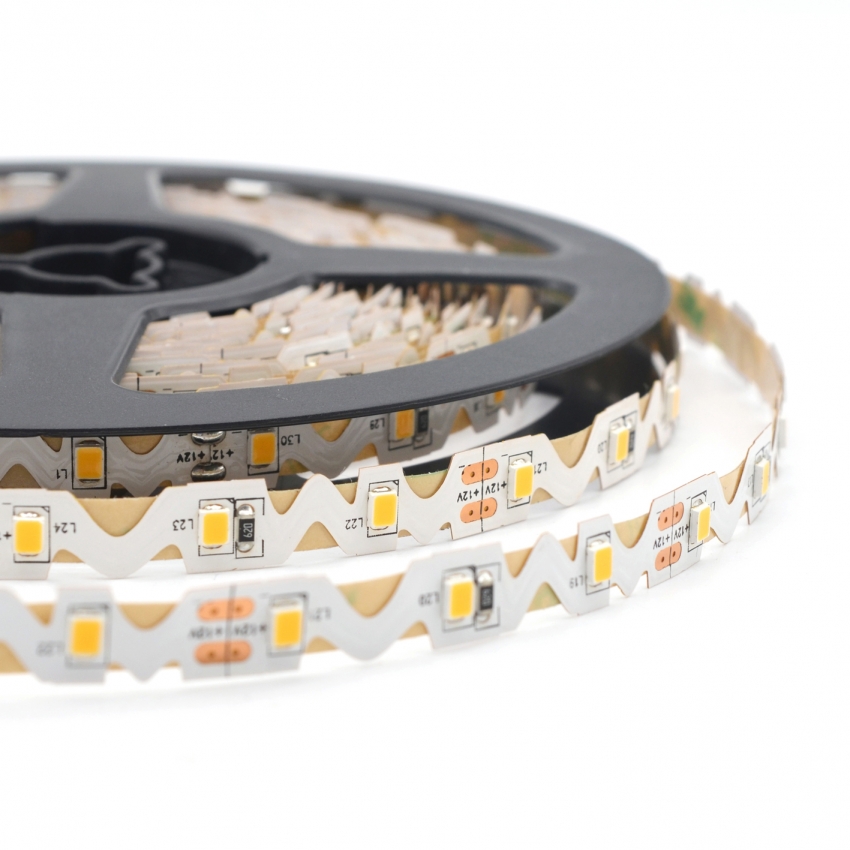

S Type LED Strip Light
The S Type LED strip light is a flexible lighting solution designed with a unique zigzag PCB layout, allowing it to bend freely in multiple directions without damaging the circuit. This innovative design makes it perfect for curved surfaces, irregular shapes, and creative installations where standard straight LED strips cannot fit.
Equipped with high-brightness 2835 SMD LEDs and available in 2700K, 3000K, 4000K, and 6500K, the S Type LED strip delivers up to 1000 lumens per meter with excellent color consistency. The 8mm wide PCB ensures durability and easy installation in narrow spaces while maintaining strong flexibility for custom designs.
Operating at DC12V or DC24V, this strip offers stable performance and low heat generation, making it ideal for signage, decorative outlines, retail displays, exhibition booths, and architectural accents. The ability to cut and connect at short intervals allows tailored lengths to perfectly fit your project.
Key Features:
Unique zigzag PCB for multidirectional bending
High-brightness 2835 SMD LEDs with multiple CCT options
Suitable for curved signage, 3D shapes, and creative installations
Operates on DC12V or DC24V for stable performance
Easy to cut, connect, and customize to any length
Specifications:
| Model No. | LED Type | Color | LED QTY | PCB width | Voltage | Watt | Lumen | Cuttable |
|---|---|---|---|---|---|---|---|---|
| ADW-2835-24V-60S-8 | 2835 | 2700K/3000K 4000K/6500K | 60LEDs/m | 8mm | DC12/24V | 12W/m | 1000LM/m | 12V:50mm 24V:100mm |

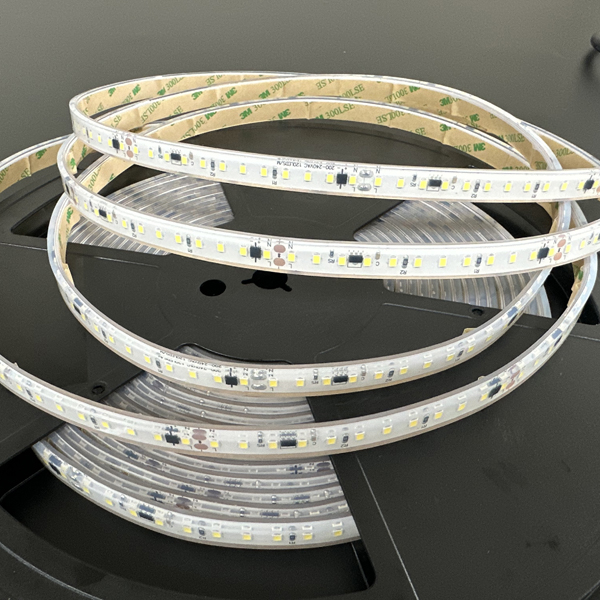

High Voltage LED Strip Light:
What is high voltage LED Strip Light?
A high voltage LED strip light refers to an LED strip that operates at a voltage higher than the standard low voltage used in most LED strip lights. Typically, high voltage LED strip lights operate at mains voltage, which is commonly 110V or 220V, depending on the electrical system used in a particular country.
Here are some key features and considerations of high voltage LED strip lights:
1). Direct Mains Connection: High voltage LED strip lights can be directly connected to the mains electrical supply without the need for a separate power supply or transformer. This can simplify the installation process and eliminate the need for additional equipment.
2). Longer Run Lengths: Due to the higher voltage, high voltage LED strip lights can typically support longer continuous run lengths compared to low voltage strips. This means that you can connect more LED strip sections together without requiring additional power injections or signal amplifiers.
3). Higher Power Consumption: High voltage LED strip lights generally consume more power compared to low voltage alternatives. It’s important to consider the power requirements and ensure that the electrical circuit can handle the load. Proper electrical wiring and circuit protection should be employed.
4). Safety Considerations: Working with high voltage requires additional safety precautions during installation and maintenance. It is crucial to follow electrical codes and guidelines to ensure proper grounding, insulation, and protection against electrical shocks. Consulting a licensed electrician is recommended for safe installation.
High voltage LED strip lights are commonly used in commercial and industrial applications where longer run lengths, higher brightness, and more robust lighting solutions are required. However, it’s important to note that working with high voltage requires a higher level of expertise and adherence to safety protocols.
High Voltage COB LED Strip Light
Model No.: ADW-COB-288D-230V
LED QTY: 288pcs COB Chip
Input Voltage: AC230V
Power per meter: 11W/meter
Color Options: WW/NW/CW/R/G/B
Size: W13mm*H7mm
Length: 50meters/roll
Cuttable Length: 0.5meter
Waterproof Version: IP65
Warranty: 2 years
2835 60LED High Voltage LED Strip Light
Model No.: ADW-2835-60D-230V
LED QTY: 60pcs 2835SMD
Input Voltage: AC230V
Power per meter: 5W/meter
Color Options: WW/NW/CW/R/G/B
Size: W13mm*H7mm
Length: 50meters/roll
Cuttable Length: 1meter
Waterproof Version: IP65
Warranty: 2 years
2835 120LED High Voltage LED Strip Light
Model No.: ADW-2835-120D-230V
LED QTY: 120pcs 2835SMD
Input Voltage: AC230V
Power per meter: 6W/meter
Color Options: WW/NW/CW/R/G/B
Size: W15mm*H7mm
Length: 50meters/roll
Cuttable Length: 1meter
Waterproof Version: IP65
Warranty: 2 years
2835 180LED High Voltage LED Strip Light
Model No.: ADW-2835-180D-230V
LED QTY: 180pcs 2835SMD
Input Voltage: AC230V
Power per meter: 8W/meter
Color Options: WW/NW/CW/R/G/B
Size: W17mm*H7mm
Length: 50meters/roll
Cuttable Length: 1meter
Waterproof Version: IP65
Warranty: 2 years
5050 60LED High Voltage LED Strip Light
Model No.: ADW-5050-60D-230V
LED QTY: 60pcs 5050SMD
Input Voltage: AC230V
Power per meter: 7W/meter
Color Options: WW/NW/CW/R/G/B
Size: W15mm*H7mm
Length: 50meters/roll
Cuttable Length: 1meter
Waterproof Version: IP65
Warranty: 2 years
5050 RGB High Voltage LED Strip Light
RGB Colour
Model No.: ADW-5050-60D-230V
LED QTY: 60pcs 5050SMD
Input Voltage: AC230V
Power per meter: 10W/meter
Color Options: RGB Colour
Size: W15mm*H7mm
Length: 50meters/roll
Cuttable Length: 1meter
Waterproof Version: IP65
Warranty: 2 years
Adapter for DC12/24V LED Strip Light
Controllers:
LED Aluminum Profiles::
Products Certificates
CE-EMC
CE-LVD
UKCA
LM80
IEC62471
Who We Are
AIDIWATT Lighting Co., Ltd. is a professional LED strip light manufacturer established in 2013 with a vision to provide cost-effective lighting solutions. Mainly produce LED Strip Lights, Silicone LED Neon Light. To meet the demands of customers’ one-stop purchasing, we also have opened many molds for Aluminum Profiles, Linear Lighting, LED Downlight and LED Track Lights.
Our led products have CE/ROHS certification for the European market and FCC certification for the North American market. Listen to your request carefully, make the order according to your request, and service as important as the products. Welcome to cooperate with AiDiWatt Lighting.
Why Choose AiDiWatt Lighting?
Production Capacity
Fully automatic machine, monthly production capacity up to 1,500,000 meters.
R&D Team
With 9-years experience in the lighting field. Our team members are highly skilled and talented.
Quality Control
5 Steps for quality control. IQC, IPQC, OQC, OE and QM.
Recyclable
Our materials are eco-friendly and biodegradable.
OEM&ODM
We support any form of OEM&ODM customization requirements.
Global Support
Contact us 12x7 to solve all your after-sales problems.
Quality Control Process
1. Materials QC Check
All materials ( PCB, LED, IC, Resistance, Aluminum Profile, Cables etc.) need QC checking.
2. LED CCT Check
Check the LED Color Temperature, Brightness, Color Rendering Index, etc.
3. LED Dehumidification
All LED need dehumidification before SMT. 65℃x 8hours .This ensure the led dry.
4. SMT process
Using high speed automate machine. Paste LED, IC, resistance. Ensure all the components are in the right place.
5. Reflow soldering
Go though reflow soldering machine and in approx 220-250℃。 Then the solder paste thaw and bonding together.
6. Inspection
100% QC inspect to ensure there are no defective LED and color shift LED.
7. Soldering PCB
Soldering 0.5m PCB together to get the length customer need. We also have 5m PCB directly no need soldering.
8. Clean PCB surface
Once soldering completed, the strip PCB will be cleaned by alcohol.
9. Slap test and Aging
Aging test for 8 hours, ensure each LED runs in good condition. And for COB LED Strip Light, there will be slap test to check the stablebility.
10. Waterproof Process
Multiple waterproof version for optional: IP54 Silicone Glue Covering, IP67 Silicone Sleeve Tube, IP68 Silicone Filled in Sleeve Tube, IP68 Silicone Extrusion.
11. Pasted with 3M tape
All led strip will be pasted with 3M tape, to ensure easy installation.
12. Final Quality Control
Our QC will check on every strip reel, to ensure consistent light color of the strip, as well as good appearance.
Production Workshop
We respect your confidentiality and all information is protected.
AIDIWATT Lighting Co., Ltd.
Address: Building D, Gongming Dianlian Technology Building, Guangming District, Shenzhen, China
WhatsApp: 008615919891625
Phone: +86 0755 23227859
Email: sales@aidiwatt.com / aidiwattlighting@gmail.com
Talk with Whatsapp and Wechat:
