LED Sheet Light for Backlit Onyx, Marble & Displays
Ultra-thin, dotless, high-CRI LED lighting sheets designed for stone fabricators, retail display builders, designers, and hotel projects.
• Zero hotspots – perfect uniformity
• Ultra-thin (2–4 mm) flexible design
• High CRI 90/95 for true color rendering
• Easy cutting and installation
Trusted by 300+ stone fabricators, hotels, and display builders worldwide.
What Is LED Sheet Light?
LED Sheet Light is a large-area LED lighting panel made with ultra-dense LED chips on a flexible PCB sheet.
It delivers perfectly uniform backlighting without hotspots, even behind thick marble, onyx, acrylic, or retail displays.
Compared with traditional LED strips, LED Sheet Light provides much better uniformity, easier installation, and flexible cutting options.
LED Sheet Light Features

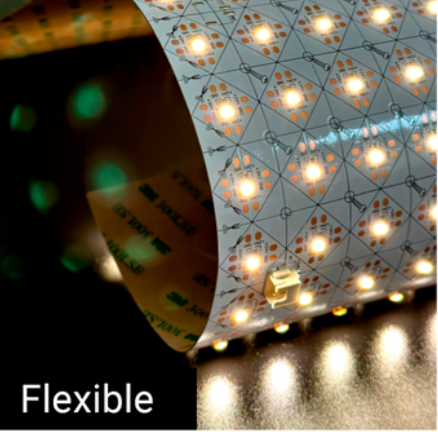

Bendable Ultra-Thin PCB
Easy to Cut

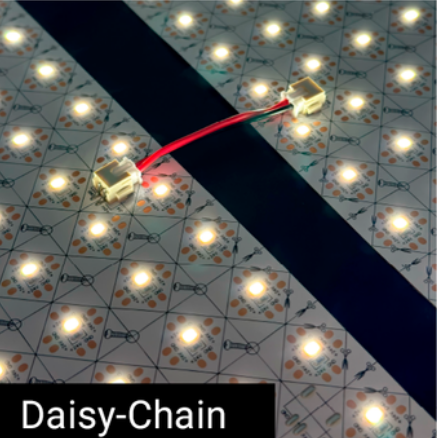

Quick Linkable Wiring
Fast Installation
1) Ultra-Uniform Backlight (Dotless Plane Light)
LEDs are densely arranged — result is a smooth surface of light with no hot spots.
Ideal for onyx / marble / quartz backlighting even at short spacing.

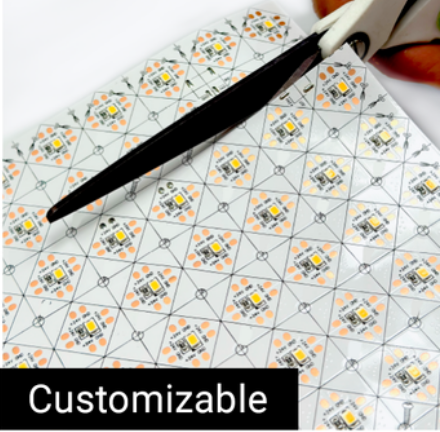

2) Flexible Cutting & Shaping
Sheets can be cut horizontally / vertically / diagonally on-site.
Easily fold around edges & corners to match real project geometry.
3) High Brightness in Thin Form
Up to ~3,400 lumens per sheet — thin + bright.
Perfect for premium hotels, bars, retail counters & feature walls.
4) Fast Install & Easy Connection
Plug-and-play connectors allow sheets to link seamlessly.
Installer simply places diffuser & adjusts spacing to final stone effect.
LED Sheet Light for Optional
Choose the sheet format that matches your lighting scenario.
All models are 24VDC, uniform plane-light output, cuttable in both directions, foldable over edges, and linkable via plug-and-play connectors.

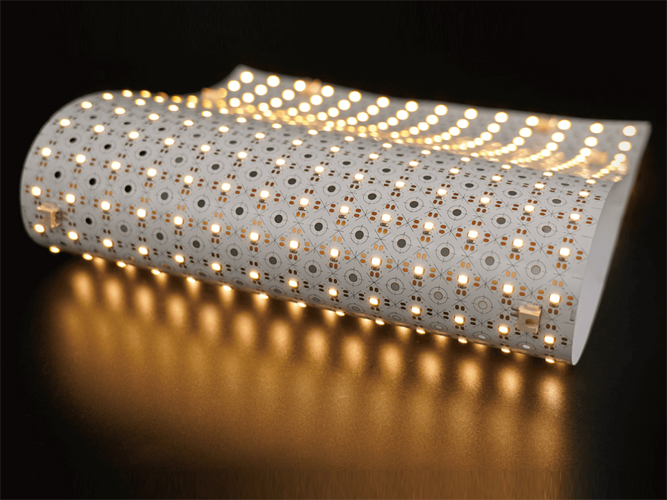

1) Single-CCT LED Sheet Light
This Single White LED Sheet provides a full plane of uniform light for stone backlighting, light boxes, bars and feature walls.

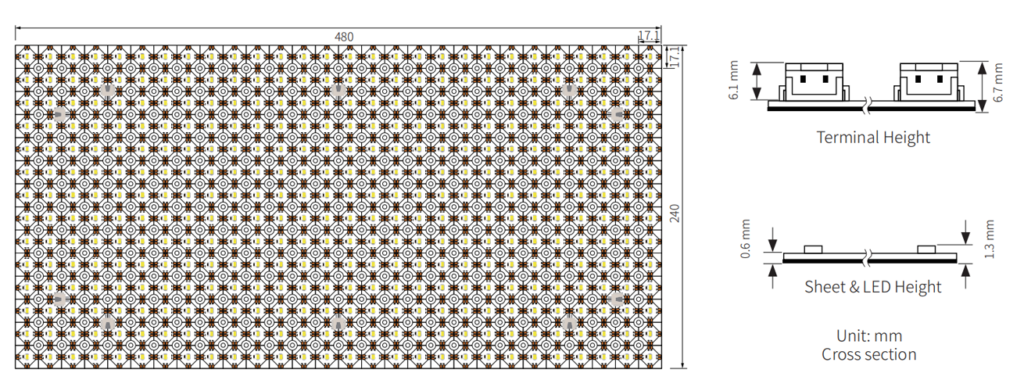

Each sheet is 480×240 mm and contains 392 pcs 2835 LEDs on board, running at DC24V with 32W per sheet power consumption.
Color temperature options range from 2700K to 6500K, CRI ≥90 for natural, realistic stone color rendering.
Cuttable horizontally / vertically / diagonally along printed cut-lines — making it very installer-friendly on site.
Best for: Backlit marble walls, hotels, bars.

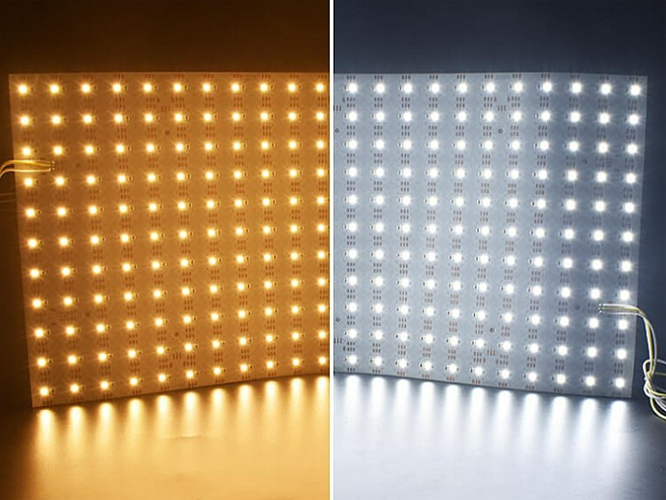

2) Tunable White LED Sheet Light
This Tunable White LED Sheet lets designers adjust ambience from warm (2700K) to cool (6500K) in one sheet — perfect for mood-based lighting in hotels, retail, bars, galleries and feature walls.
Each sheet is 480×240mm and integrates 784 pcs SMD2835 LEDs (double density vs single-CCT version) for higher uniformity, powered by DC24V, 32W per sheet, with CRI ≥90 for true color rendering.
Cuttable horizontally / vertically / diagonally with printed cut-lines for flexible on-site shaping.
Best for: Hospitality, ambiance lighting.

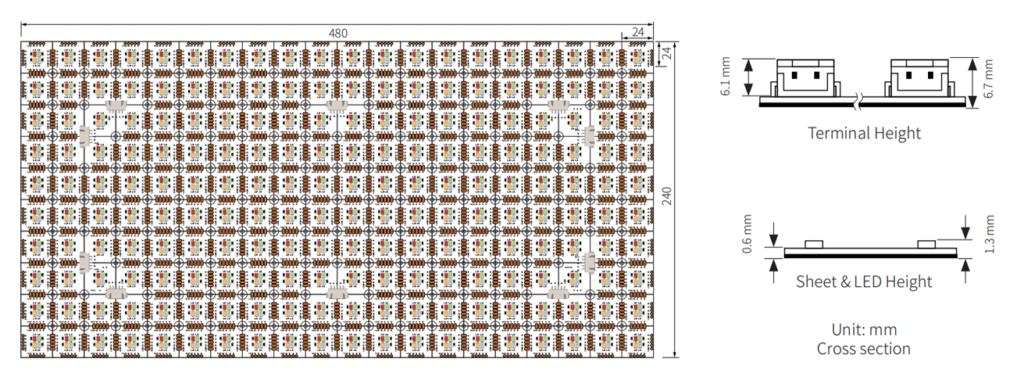

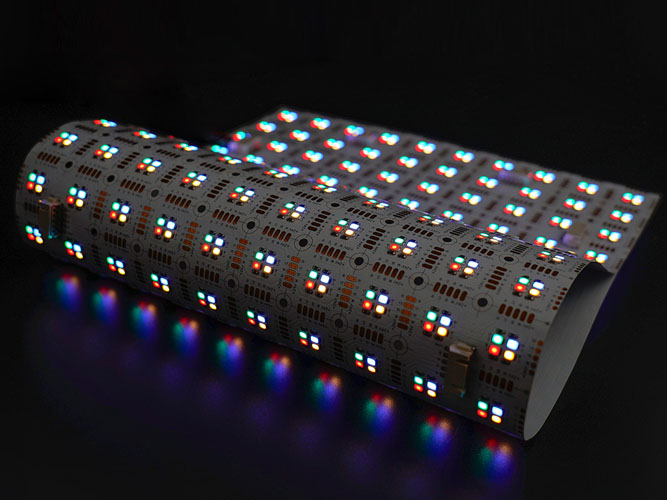

3) RGBW LED Sheet Light
The RGBW LED Sheet delivers both full-white illumination (2700K–6500K) and rich RGB color in one flexible plane-light panel — perfect for bars, retail counters, themed hospitality and premium feature walls where color + white rendering are both required.
Each sheet is 480×240 mm and integrates 800 pcs SMD2835 LEDs running at DC24V / 32W per sheet, CRI ≥90 on the white channel.
Cuttable in both X / Y direction — easily shaped on-site and linkable with plug-and-play connectors.
Best for: Bars, luxury clubs, retail displays.

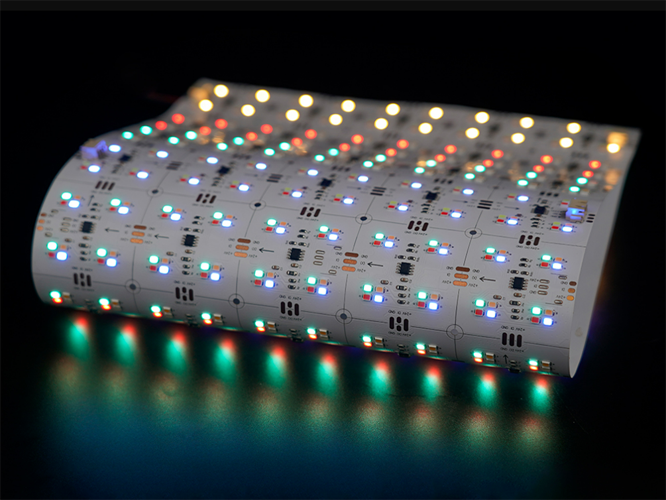

4) SPI-RGBW LED Sheet Light
The SPI RGBW Pixel LED Sheet is designed for installations that need programmable effects — gradients, chasing, pixel mapping, dynamic ambience — while keeping the ultra-thin plane-light format.

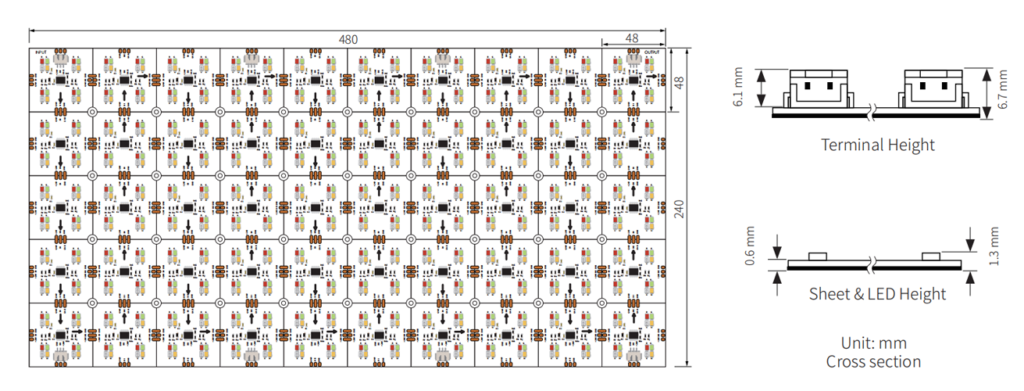

Each sheet is 480×240mm and integrates 800 pcs SMD2835 LEDs arranged as 50 RGBW pixels. Powered by DC24V, up to ≈92W per sheet, CRI ≥90 on white channel. UCS2904 IC built-in — each pixel is independently addressable for full animation control.
Cuttable in grid direction (48×48mm pixel units) — ideal for creative surfaces, themed bars, signage, media surfaces, luxury retail feature walls.
Best for: Advertising, media walls, animation surfaces.
Applications of LED Sheet Light
LED Sheet Light is a thin, uniform, high-density backlighting solution used across luxury interiors, architecture, retail, hospitality, and commercial displays.

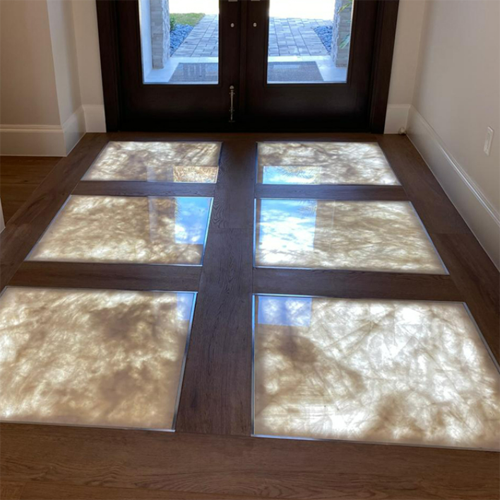

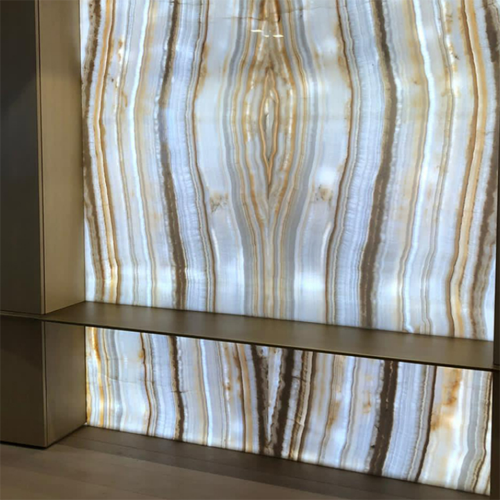

Backlit Onyx
Backlit onyx requires powerful and uniform illumination to show the stone’s translucent beauty and dramatic veining. LED Sheet Light eliminates hot spots and provides perfect surface brightness.
Benefits:
Dotless lighting reveals natural onyx textures
High brightness suitable for thick or uneven stone
Thin profile fits tight cavities behind panels
More consistent than LED strip installations
Backlit Marble & Translucent Stone
Marble and other translucent stones need even backlighting to avoid patches and striping. LED Sheet Light covers the entire panel uniformly.
Benefits:
Smooth, even glow across large stone surfaces
CRI options help restore stone’s natural color
No light lines or dark bands
Ideal for decorative walls and luxury interiors

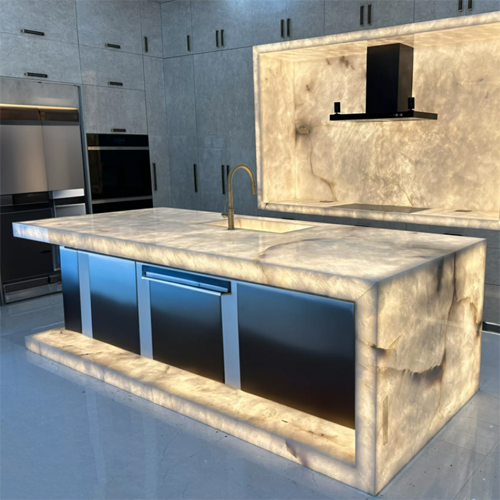

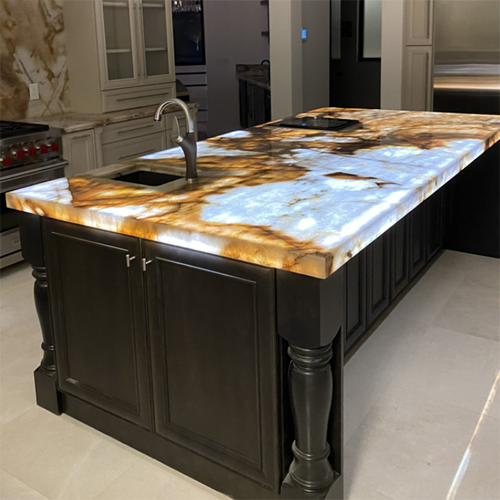

Countertops & Bar Tops
Backlit countertops and bar tops usually have minimal space for lighting. LED Sheet Light delivers high brightness in a slim form.
Benefits:
Ultra-thin module fits shallow cavities
Bright, uniform glow across the full surface
Custom cut sizes for curves and irregular shapes
Low heat and stable for 24/7 hospitality use
Hotel Lobby Feature Walls
Hotels use large backlit surfaces to create impressive entrance spaces. LED Sheet Light ensures seamless brightness and a premium visual effect.
Benefits:
Consistent illumination over big areas
High brightness for dramatic architectural features
Compatible with stone, acrylic, resin, and glass
Lightweight and easy to integrate into wall structures

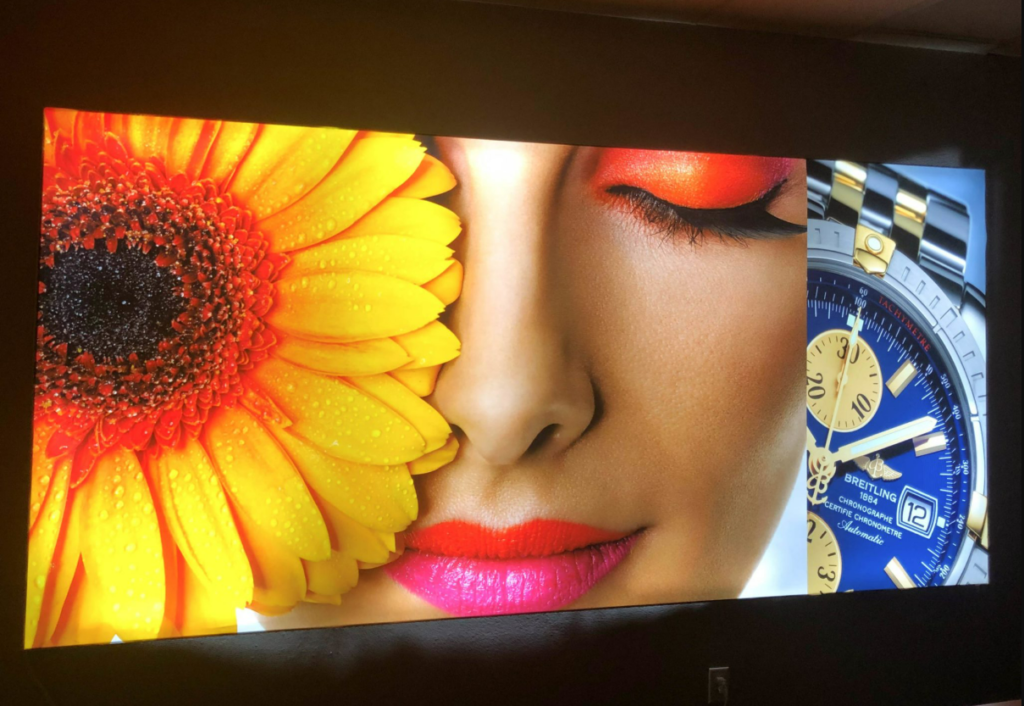

Lightbox Signage & Advertising Panels
For slim lightboxes, LED Sheet Light provides bright and shadow-free illumination, even with minimal depth.
Benefits:
Uniform backlight for printed graphics
Slim design reduces lightbox depth
High luminosity for commercial advertising
Easy installation and maintenance-friendly

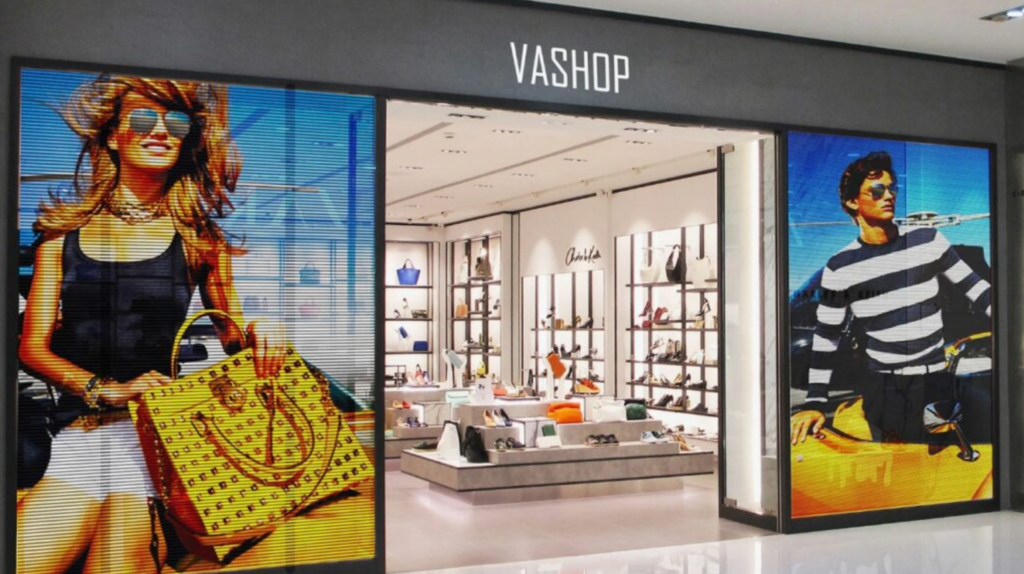

Retail Display Backlighting
Retail environments require bright and clean lighting to showcase products clearly. LED Sheet Light enhances visual merchandising and branding.
Benefits:
High CRI improves product color accuracy
Dotless uniformity for premium store presentation
Fits behind shelves, walls, and display fixtures
Supports both small and large retail installations
Cosmetic Shelves & Beauty Displays
Cosmetic presentations rely on soft, even illumination with no shadows. LED Sheet Light creates a premium retail experience.
Benefits:
Shadow-free illumination for product packaging
Slim enough for compact shelf structures
Enhances brand image and premium feel
Ideal for makeup counters and skincare showcases

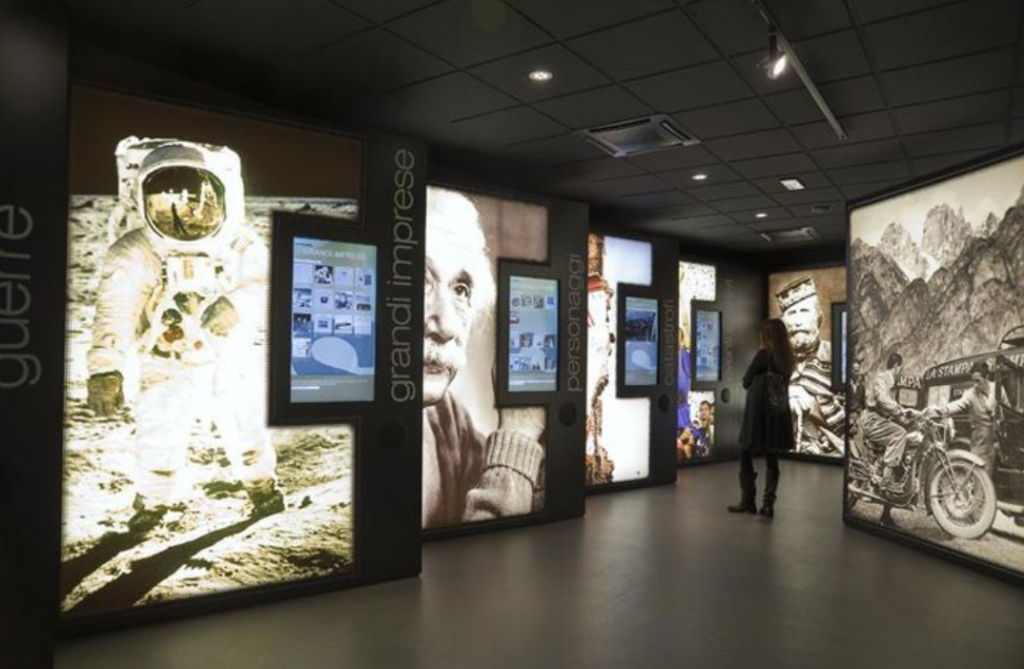

Exhibition & Museum Display
Exhibition displays often involve custom shapes, limited space, and high visual requirements. LED Sheet Light adapts easily.
Benefits:
Customizable cut and layout
Lightweight for portable installations
Even brightness suitable for art and museum displays
Perfect for logos, signage, light walls, and models

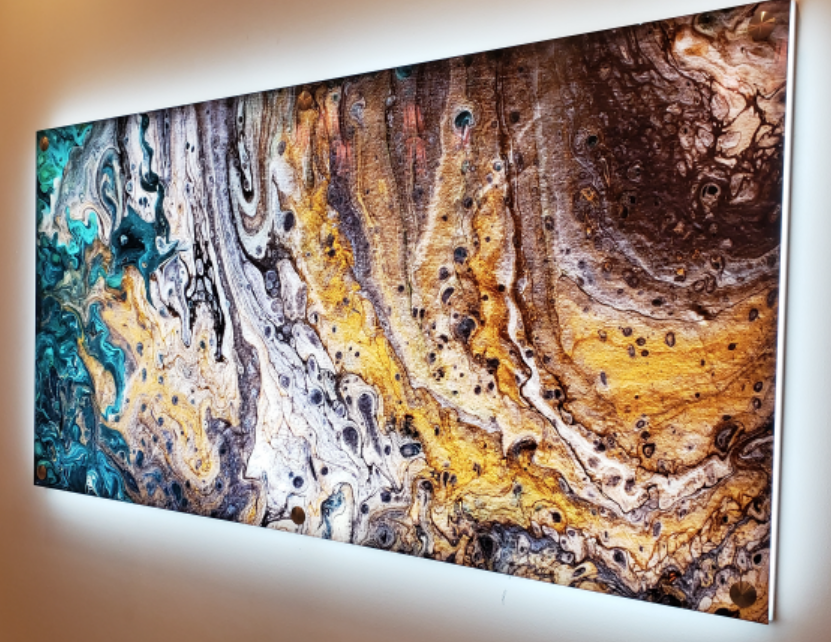

Acrylic & Glass Backlighting
Acrylic and frosted glass panels appear smooth and elegant when evenly backlit. LED Sheet Light ensures a soft, diffused glow.
Benefits:
No visible LED pixels
Works with shallow installation depth
Clean diffusion behind glass/acrylic panels
Ideal for partitions, ceiling features, and signage

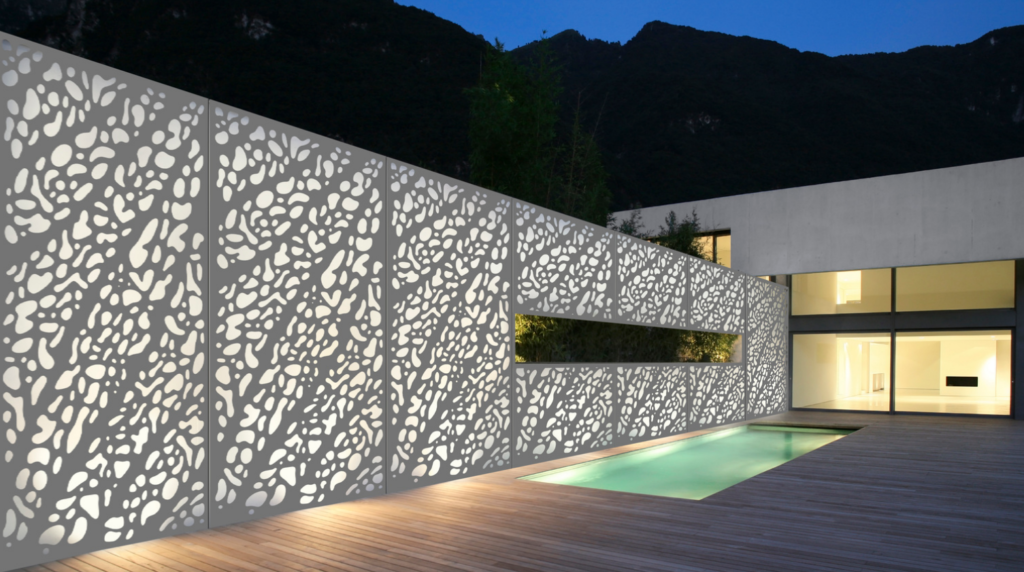

Architectural Feature Panels
Architects often use light as a design material. LED Sheet Light enables creative, modern illuminated surfaces.
Benefits:
Consistent, high-quality illumination
Thin profile hides behind almost any surface
Supports stone, acrylic, resin, metal, or fabric
Enables custom shapes and unique architectural lighting effects
How to Install LED Sheet Light
1. Clean the installation surface.

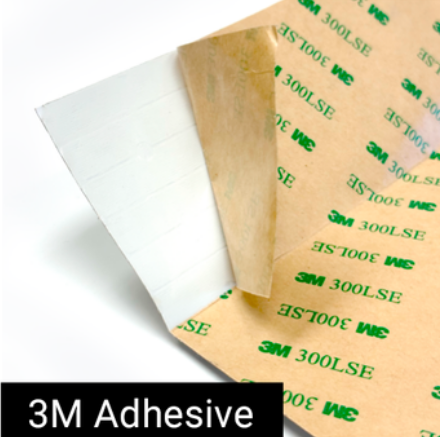

2. Peel off 3M tape and stick the sheet.
3. Connect wires (positive / negative).
4. Test illumination and uniformity.
5. Install stone or acrylic cover panel.
6. Add aluminum sheet if additional heat dissipation is needed.
Safety Note:
Always test illumination before installing stone panels.

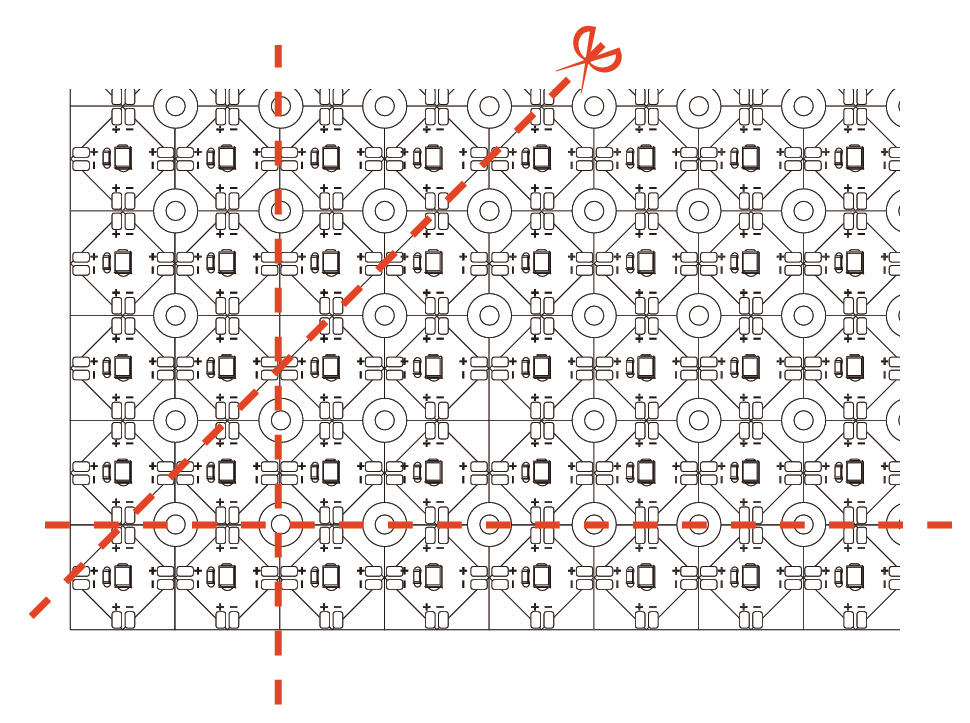

How to Cut LED Sheet Light
LED Sheet Light can be cut along the printed cut lines without damaging the circuit. You can create L-shapes, curved shapes, or custom sizes depending on the project.
As shown in the figure, horizontal cutting, vertical cutting and oblique cutting can be carried out along the lines on the panel. When cutting, do not cut components by mistake
Always avoid cutting through LED chips or resistors.
LED Sheet Light vs LED Strip
| Item | LED Sheet Light | LED Strip |
|---|---|---|
| Hotspots | None | Visible |
| Area Coverage | Large | Linear |
| Cutting | Flexible | Fixed interval |
| Uniformity | Excellent | Medium |
| Best For | Stone / retail walls | Cabinets / line lighting |
FAQ:
Q1: Will LED Sheet Light show hotspots?
No, AiDiWatt LED Sheets are designed with ultra-dense LEDs to ensure perfectly uniform illumination with zero hotspots.
Q2: Can the sheet be bent or curved?
Yes. It can handle gentle bending and can be applied on slightly curved surfaces, making it suitable for creative shapes.
Q3: Is LED Sheet Light suitable for stone backlighting?
Yes — LED Sheet Light is the best solution for backlighting onyx, marble, jade, and resin panels due to its thin profile and uniform plane-light output.
Q4: Can I order custom sizes or shapes?
Yes. We provide custom shapes, sizes, cut-outs, and layouts based on your project requirements.
Q5: Is waterproof protection available?
Yes. IP54 and IP65 versions are available upon request for semi-outdoor or humid environments.
Q6: How do I choose the correct wattage?
Thicker or darker stone requires higher wattage.
Thin or translucent stone can use lower wattage.
If you’re not sure, share your stone photo and thickness — we will recommend the best wattage.
Q7: How many sheets do I need for my wall or panel?
Measure the total illuminated area (width × height), then divide by the usable sheet area.
For example:
A 3m × 1.2m wall = 3.6 m²
One 480×240 mm sheet ≈ 0.115 m²
So you need about 32 sheets.
Send us your drawing, and we can calculate the exact quantity for you.
Q8: What power supply should I use?
Use a constant-voltage power supply that matches the sheet voltage (24V/36V/48V).
Choose a power supply with at least 20–30% extra capacity above total wattage for stable performance.
Q9: Can LED Sheet Light be dimmed?
Yes. It supports PWM dimmers, 0–10V dimming, TRIAC dimming, DALI dimming, and smart controllers depending on your power supply.
Q10: Can I cut the sheet myself?
Yes. Sheets can be cut horizontally, vertically, or diagonally along the printed cut-lines without damaging the circuit.
Avoid cutting outside the marked lines.
Q11: Can I connect multiple sheets together?
Yes. Sheets can be daisy-chained using the included connectors, allowing large-area installations with uniform brightness.
Q12: What is the lifespan of LED Sheet Light?
Typically 50,000–100,000 hours, depending on wattage and heat management.
Adding an aluminum backing can extend lifespan.
Q13: How thick is the LED Sheet Light? Will it fit behind stone?
The sheet is only 2–4 mm thick, so it fits into shallow cavities behind onyx and marble panels even when space is limited.
Q14: What color temperatures and versions are available?
We offer:
Single CCT (2700K–6500K)
Tunable White
RGB
RGBW
SPI-RGBW addressable pixel version
All in the same ultra-thin plane-light format.
Q15: Can LED Sheet Light be used continuously 24/7?
Yes. AiDiWatt LED Sheets are built for long-term commercial operation in hotels, bars, retail stores, and signage applications.
Ensure proper ventilation and appropriate power supply.
